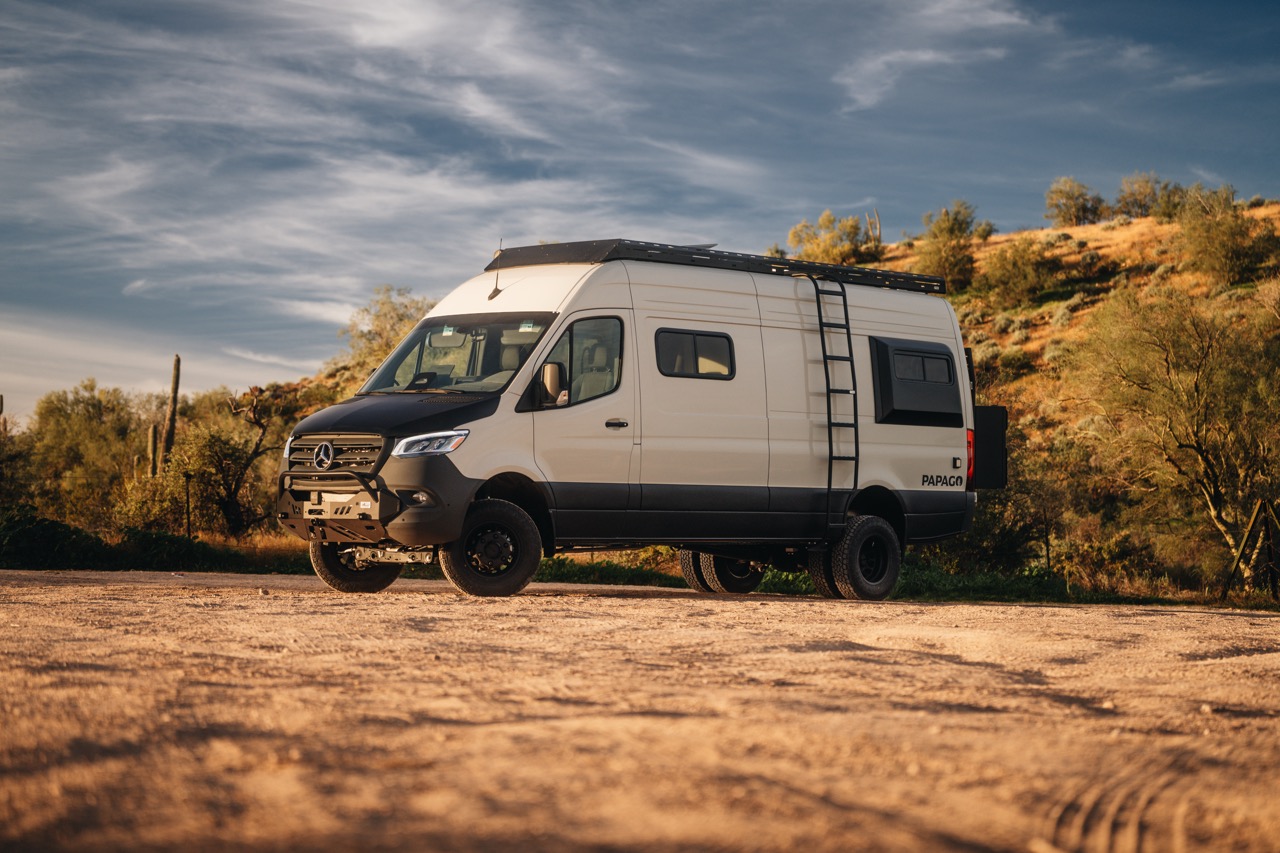

Built for big miles and bigger comfort, this 2025 Sprinter 170 AWD Dually in our El Capitan Tier is a four-season, off-grid-ready rig with serious capability baked into every system. From a high-capacity power setup and heated tanks to a tiled indoor shower, live-edge counter, skylight, and rugged exterior upgrades, this build is designed to feel refined on the inside—and fearless everywhere else.
Electricity
- 200W Solar System
- 100Amp DC-DC Battery Charger
- 800Ah Lithium Iron Phosphate Battery (Battle Born)
- 3000W power inverter/charger (UL rated pure sine wave)
- 8x 110v electrical outlets with USB/A&C
- 1x 110v GFCI electrical outlet on side of control panel daisy chained before all other outlets (+1 switched GFCI outlet for Bosch, not shown in design)
- 30amp shore power electrical plugin
Plumbing
- 33G over the wheel well water tank w/ water level sensor and heating pad (glue havelock wool over wheel well before placing tank)
- Greywater System with heating pad
- Laveo Dry Flush Toilet w/ internal battery, anti slip mat placed under, and rain cover
- Indoor shower – Tiled (hot & cold)
- Moen shower head with slide bar matte black (3558EPBL)
- 4 gallon, electric, hot water heater
- Rear door, outdoor shower
Heating/Cooling
- Premium Insulation Package (all havelock wool, foam insulation tube/elbows/T’s over all pex lines and fittings, exterior pipe insulation on all plumbing under van, RecPro RV Tank Heater Pad stuck to bottom side of greywater tank starting on valve end, RecPro RV Tank Heater Pad stuck to side of freshwater tank starting from the floor up)
- Maxxair Deluxe ceiling vent fan w/ Remote
- Dometic Heki Mini Plus RV Rooflight (skylight)
- 12v Roof Mounted Nomadic A/C unit w/ Remote
- Espar, diesel powered, cabin heater
Kitchen
- NO induction cooktop included in build
- Undermounted sink and faucet (hot & cold)
- Sink insert cutting board (save center sink hole cutout piece raw and place in cabinet under sink after build)

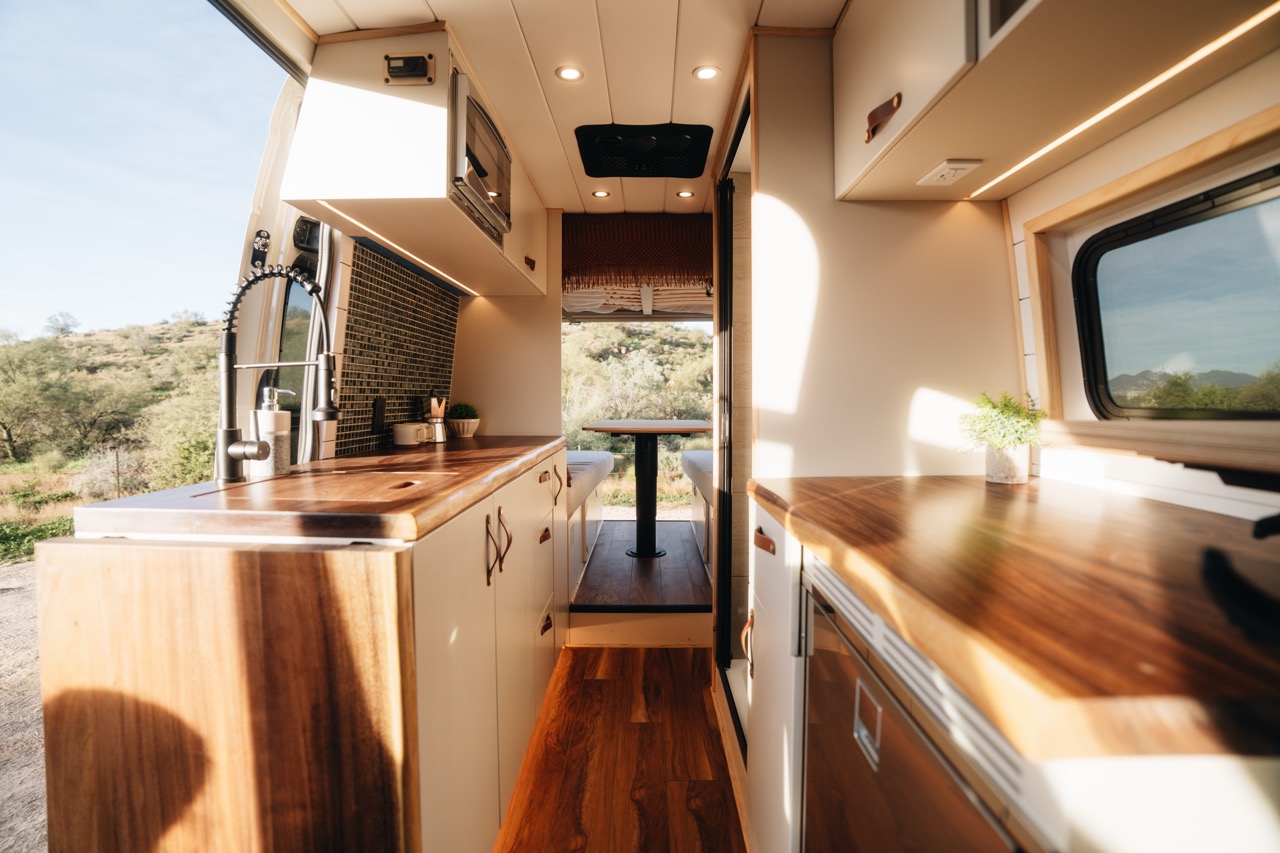

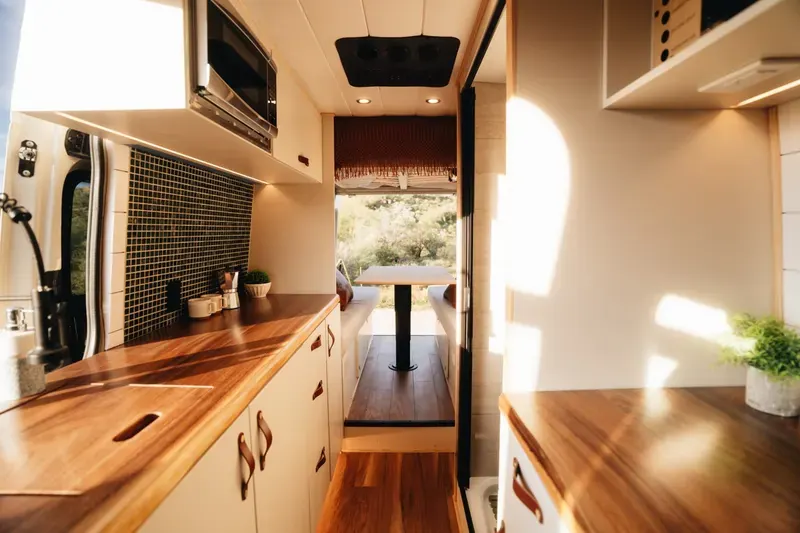

- Live edge style counter top w/ flip up end counter cut from same slab

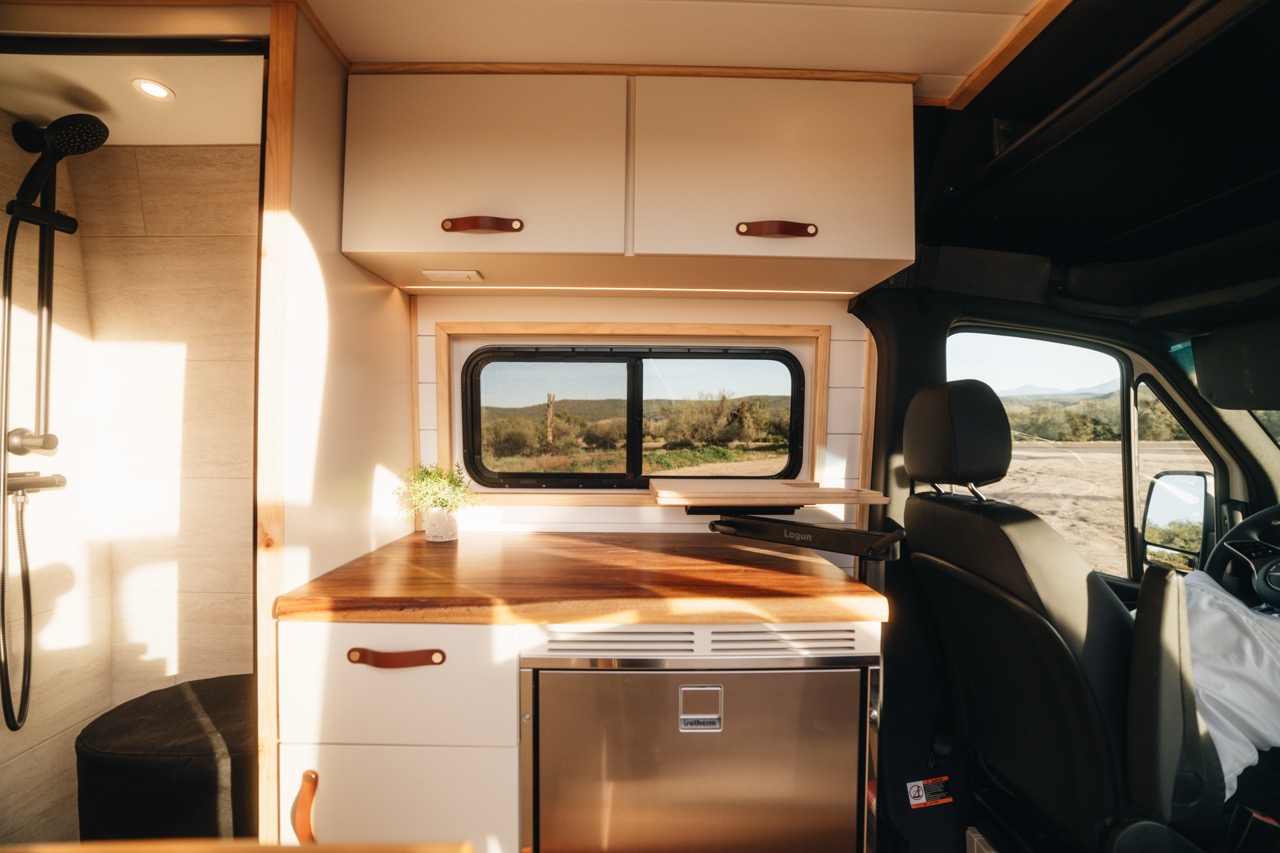

- Isotherm Cruise 130 refrigerator (shower depth cabinet)
- 700W Microwave
Aesthetic
- Wood, stained, ceiling
- Recessed, dimmable, LED ceiling lights
- Vinyl, wood style flooring
- Advanced Interior Lighting Package (LED strip under kitchen kicker wired to separate switch on closet face)
- Choice of Shower Tile
- Backsplash Tile
Storage
- 3x overhead cabinets
- Under counter, double-door, cabinet (36” wide)
- Under counter drawer cabinet (15” wide)
- Under counter storage cabinet (15” wide)
- Under counter drawer/storage cabinet combo (15” wide)
- Floor to ceiling closet w/ shelves in top and hanging rod in bottom (15” wide)

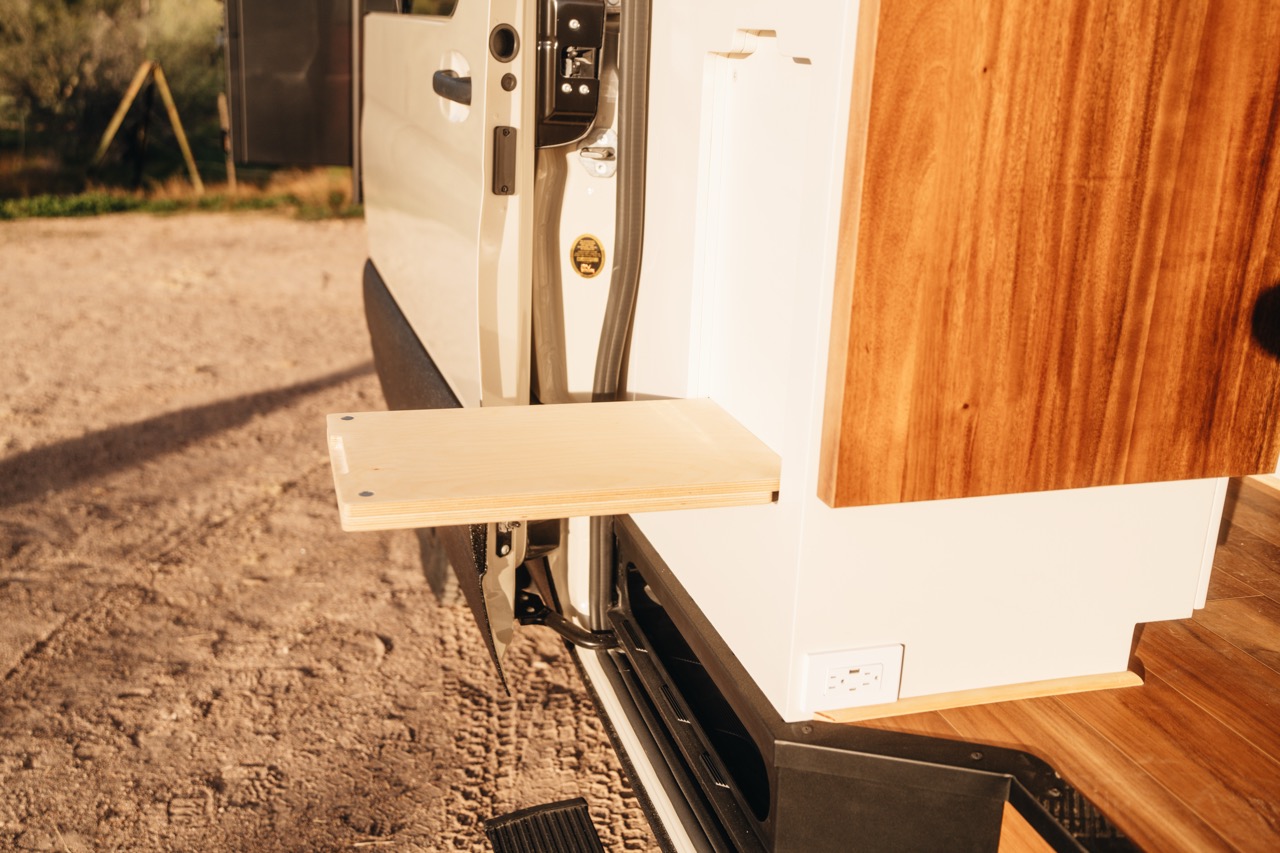

- FVCO Sprinter Van Step Extension (sliding door shoe cubby)
- Headliner shelf
- 2x 18” Hanging Bag by Van Wife Components (no logo) w/ 66” J Channel Rail (will be cut down to size)
Misc
- Lippert Smart Bed Complete Kit lifting bed

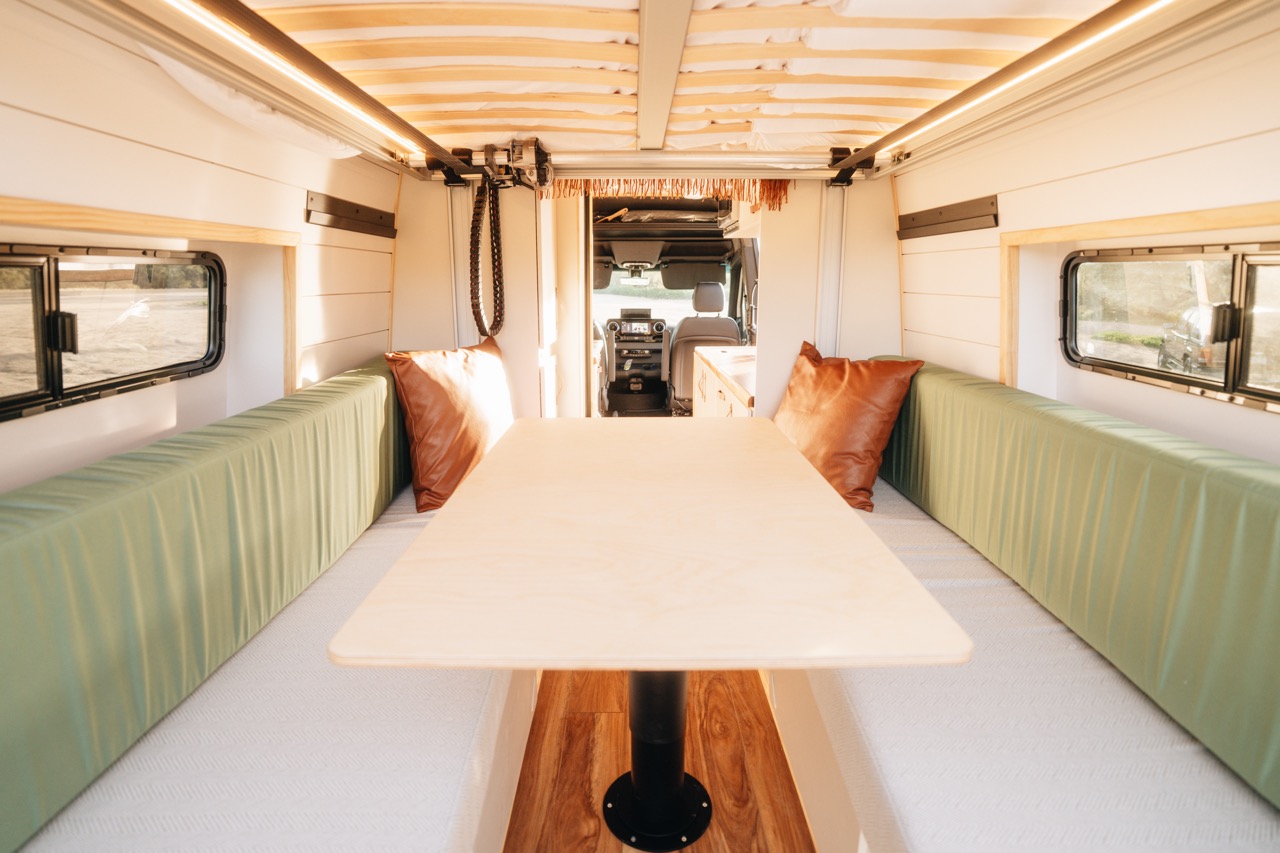

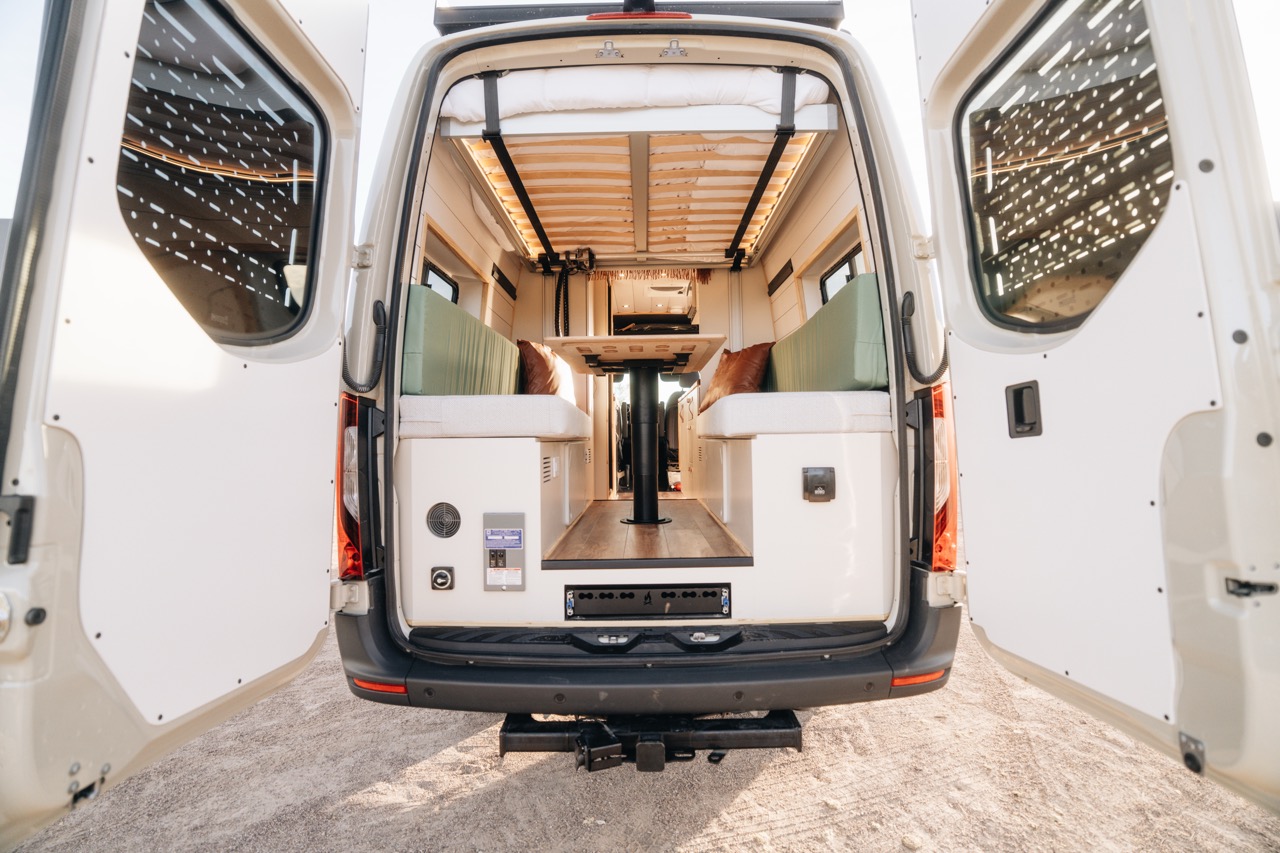

- Raised dinette bed w/ FVCO heavy duty pull out tray in center
- Swivel passenger and driver seats
- Fire extinguisher
- Carbon Monoxide/Smoke Detector

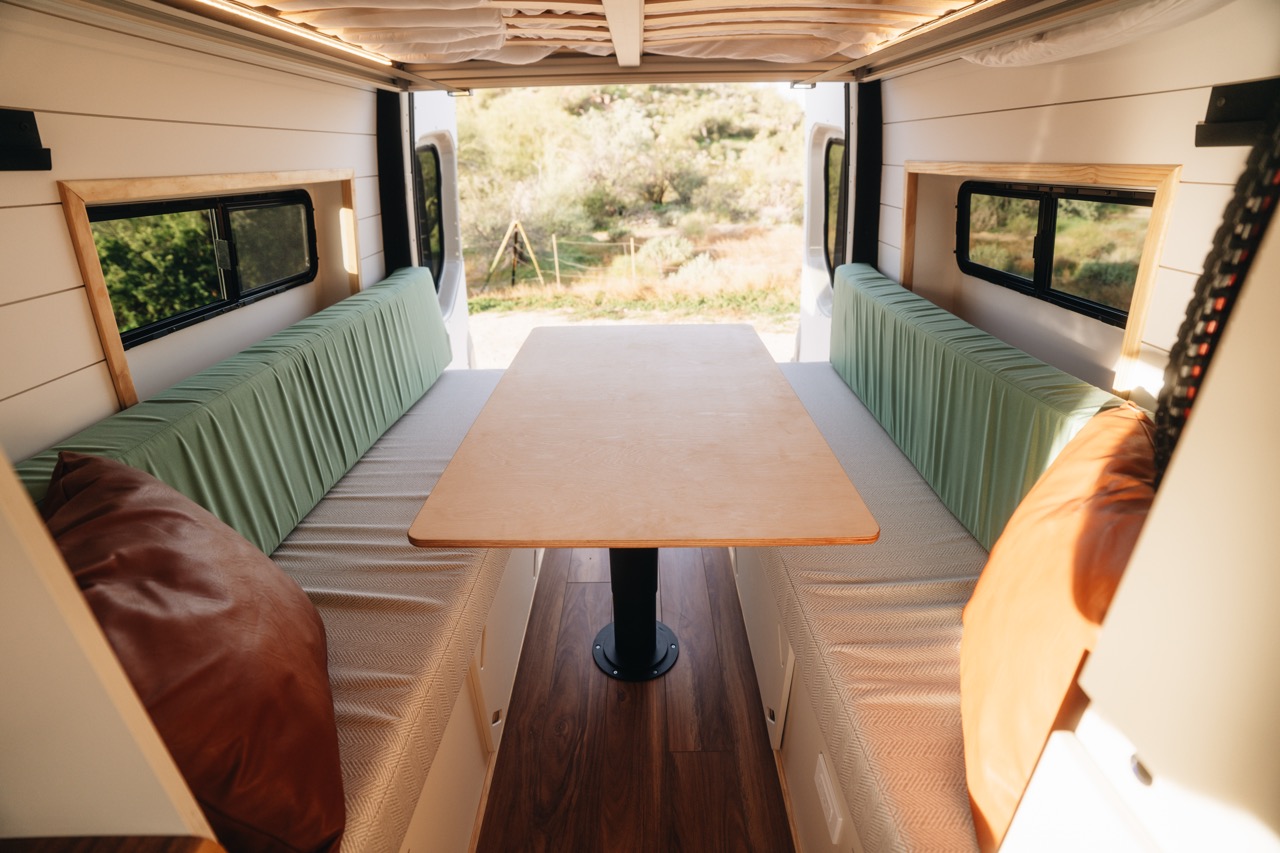

- Lagun Swivel/adjustable table

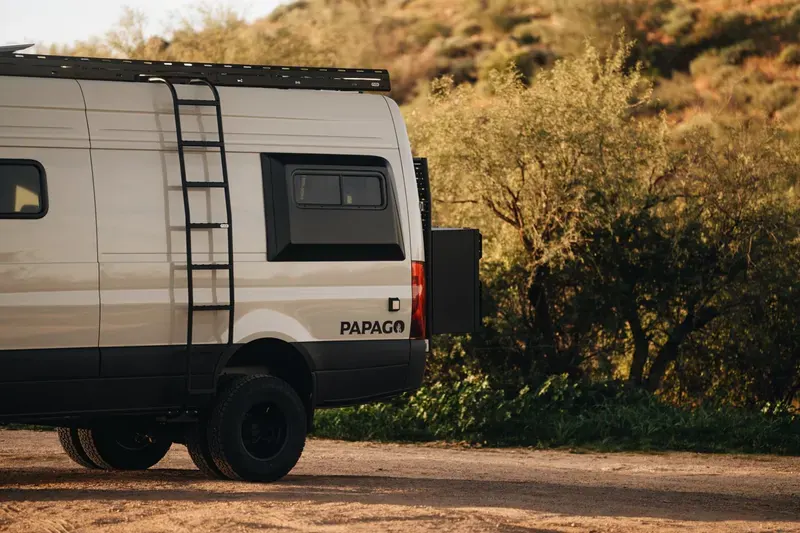

- Bunk window install (RB Components 15×36 half slider)
- Passenger Sliding Door T-Vent Window
- Solid glass, rear door windows

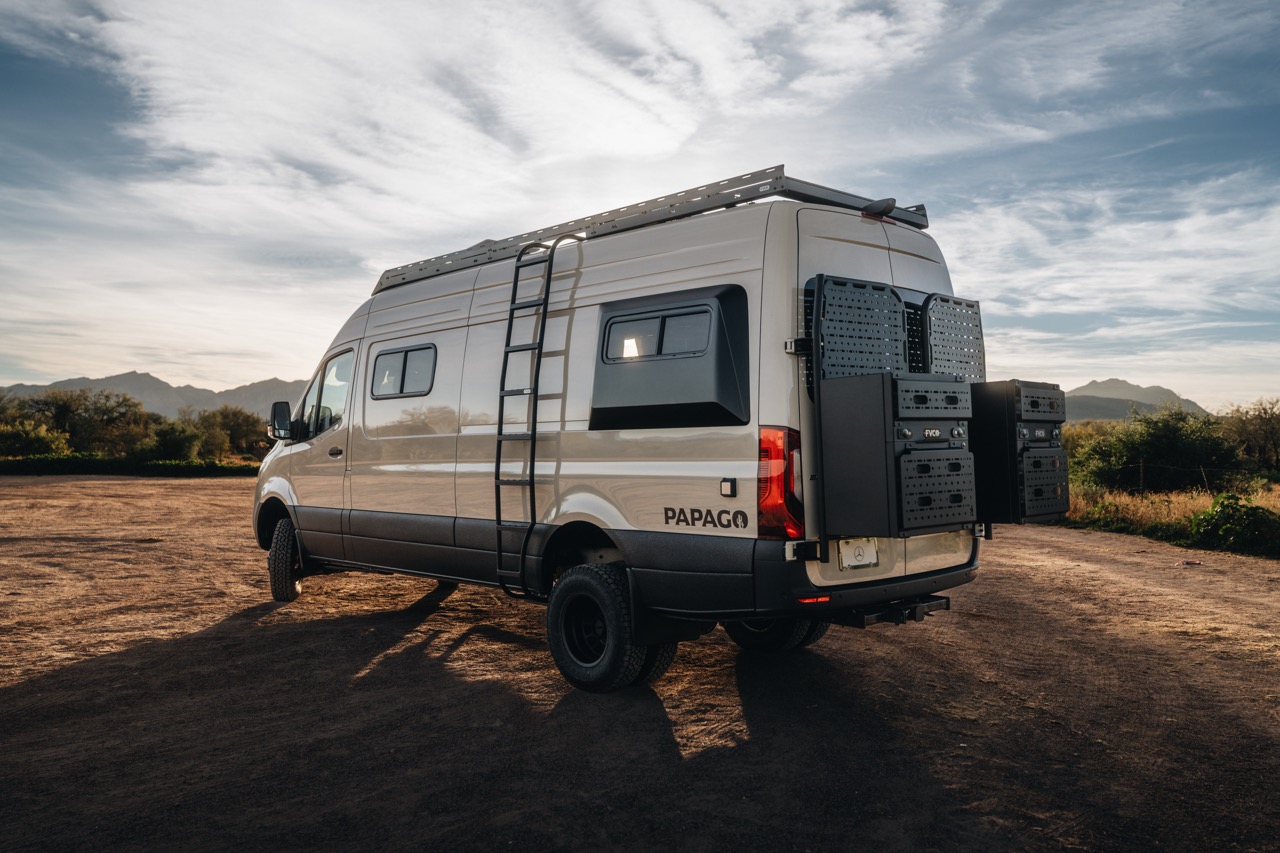

- FVCO Sprinter Standard Roof Rack w/ wheel wrap side ladder
- Vehicle body flairs (extends sleeping space)
- Electric Awning w/ integrated LED package
- All terrain wheels and tires (set of 4) leave spare tire under van
- Van Compass Suspension Upgrade whatever our equivalent kit is for a dually

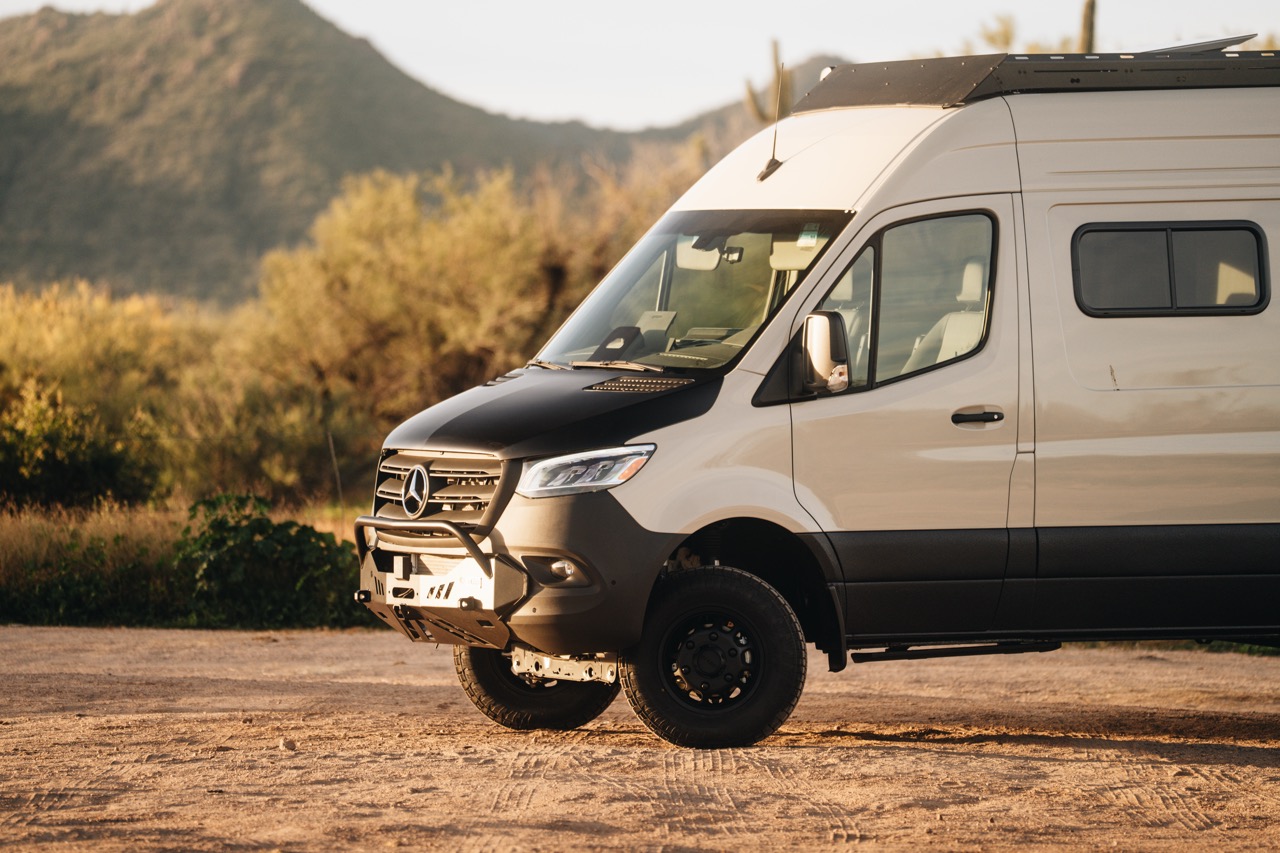

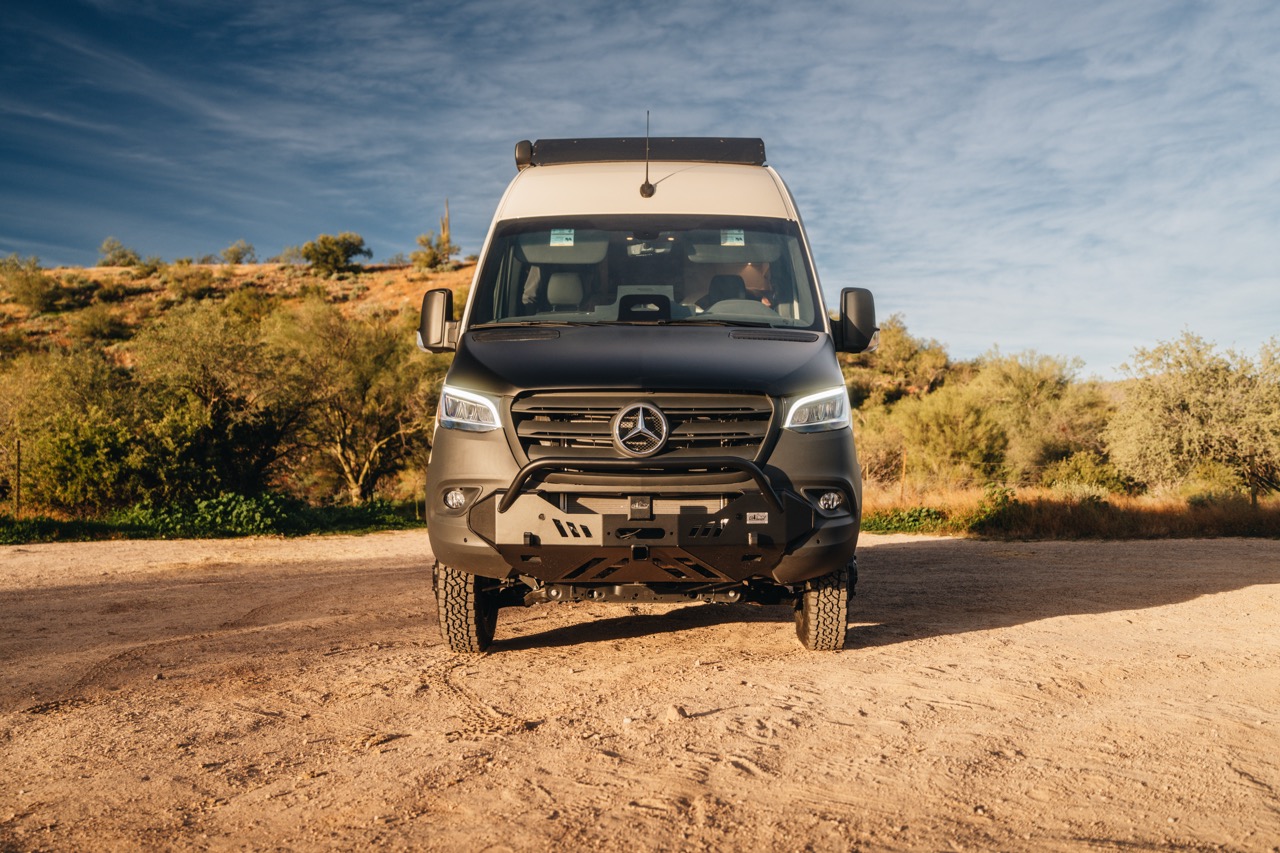

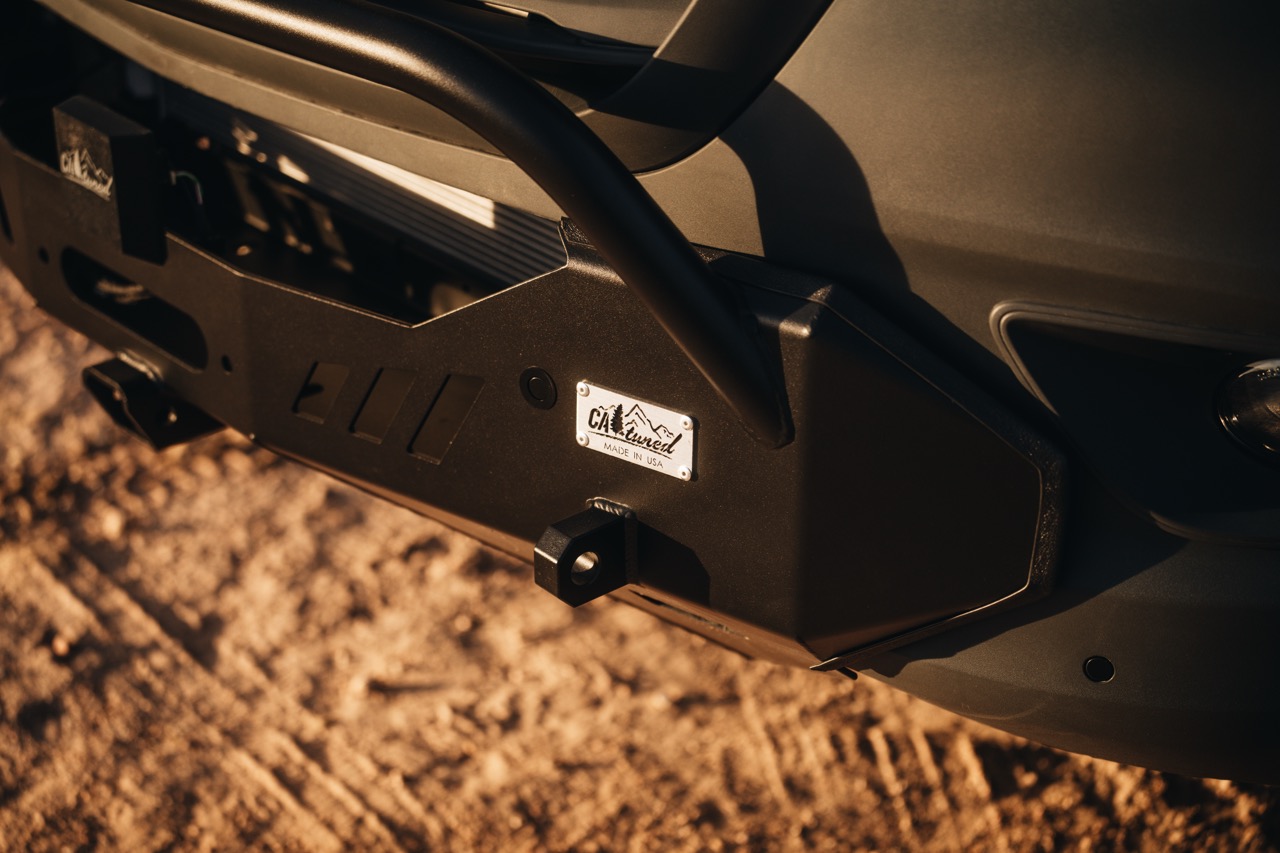

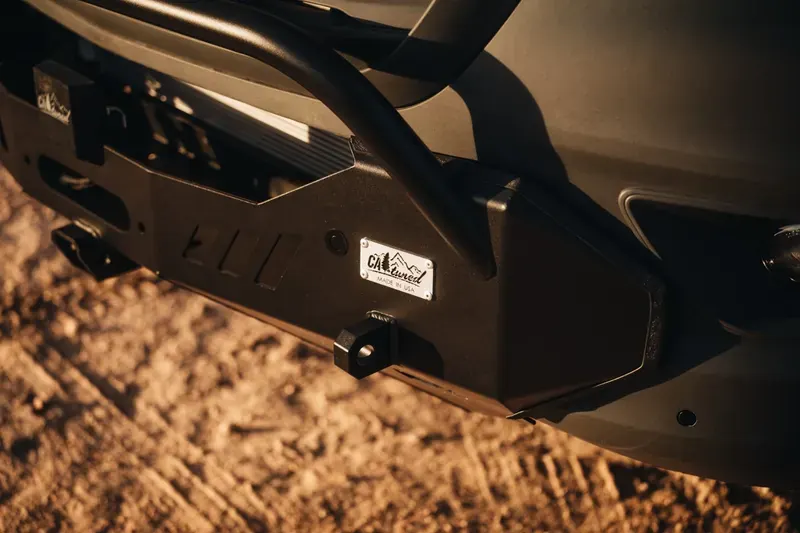

- CA Tuned front bumper only (for 3500 models may need to modify the frame rail with a riv nut)
- FVCO Sprinter Rear Door Platform (Passenger Side)
- FVCO Sprinter Rear Door Platform (Driver Side)

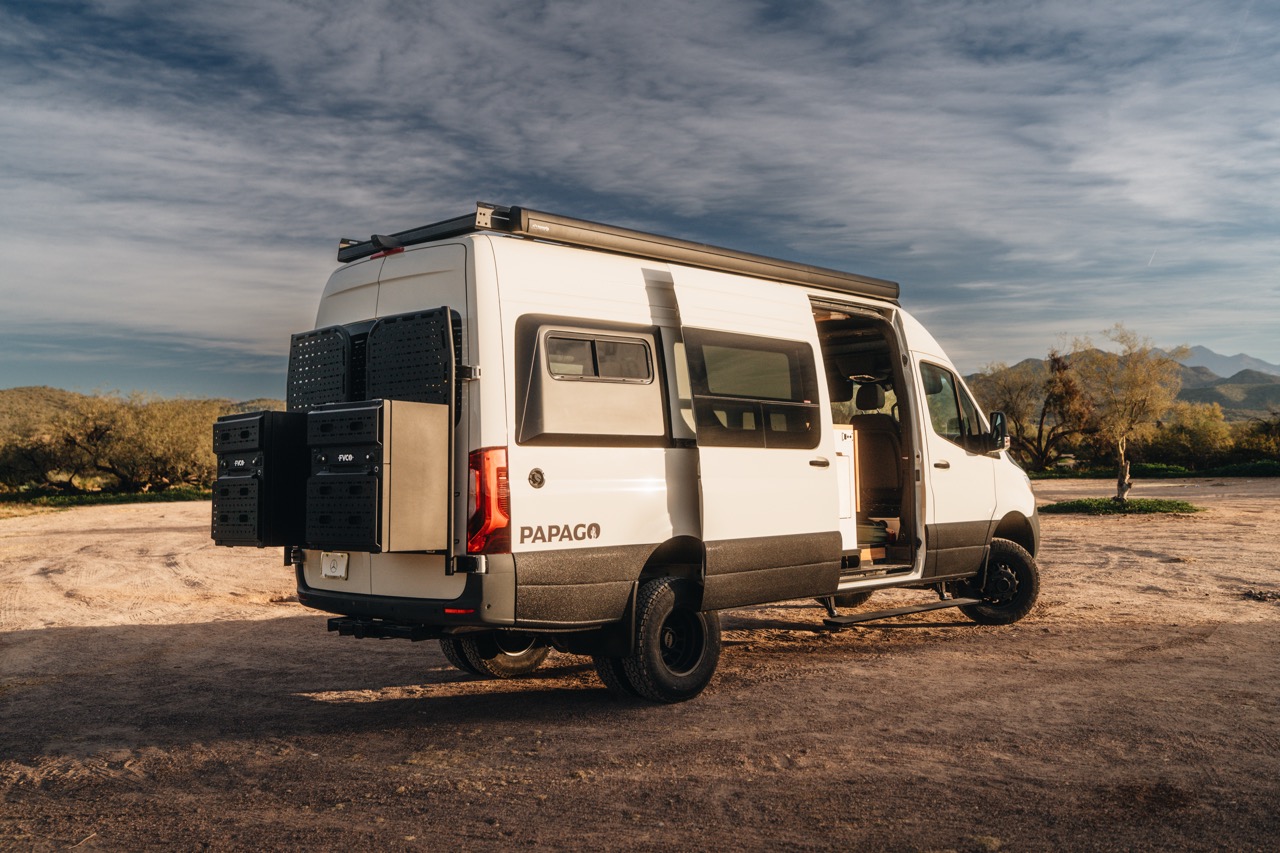

- 2x FVCO Van Rear Storage Box (mirror the setup on both doors)
- AMP power retracting steps
- Tuff Skin truck bed liner sprayed from plastic down (including plastic) on driver and passenger sides
- Sprinter hood painted matte black
- Starlink In Motion High Performance Kit (save “KIT” serial sticker from box for customer packet)
- Magnetic, blackout, window coverings (set of 10)
Colors
- Flooring: Addington Acacia
- Stain (counter tops, tables, trim): Natural
- Countertop: Upgrade to Live Edge
- Cabinet Paint: Canvas Tan (SW7531)
- Walls AND CEILING Paint (no white anywhere): Marshmallow (SW7001)
- Fixtures (faucet, shower head, shower door, door hardware, Lagun Bracket): Brass / Matte black
- Outlets: White (black outlet on backsplash only if dark tile)
- Door handles/hardware: Light brown leather/brass knobs

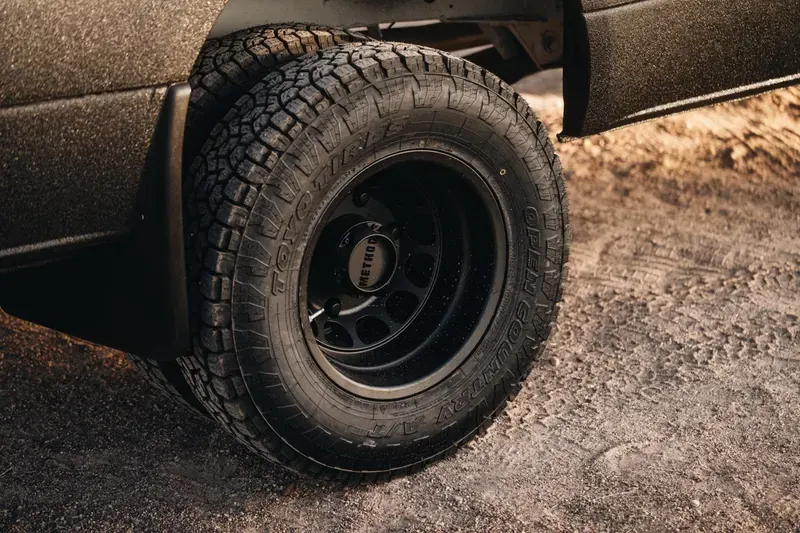

- Rims: Method 901 Matte Black
- Shower Tile/Grout: Forum Ivory/Bone Grout
- Backsplash Tile: Celestial Glossy Lincoln Green and Gold 12×12 glass mosaic
- Backsplash Grout: Bone
- Cushion Fabric (seat cushions): Posh Pebble
- Cushion Fabric (back cushions): Canvas Basil
- Flare paint color: Matte Black
- Hood Paint color: Matte Black
