Horizon House

This 2025 Sprinter AWD 170 build in our El Capitan Tier is built for long trips, remote camping, and comfortable life on the road. With a high-capacity Battle Born power system, heated water tanks, indoor tiled shower, full kitchen, Starlink, pop top, king bed, and rugged exterior upgrades, it’s a refined adventure van made to go farther and stay out longer.

Platform

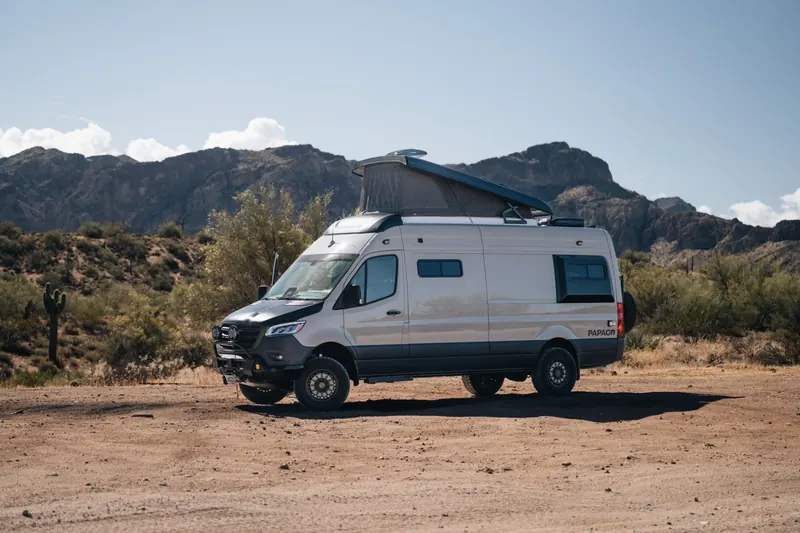

• 2025 Mercedes Sprinter 170 AWD
• El Capitan build tier, level 5 of 5
• Extended 170 wheelbase layout

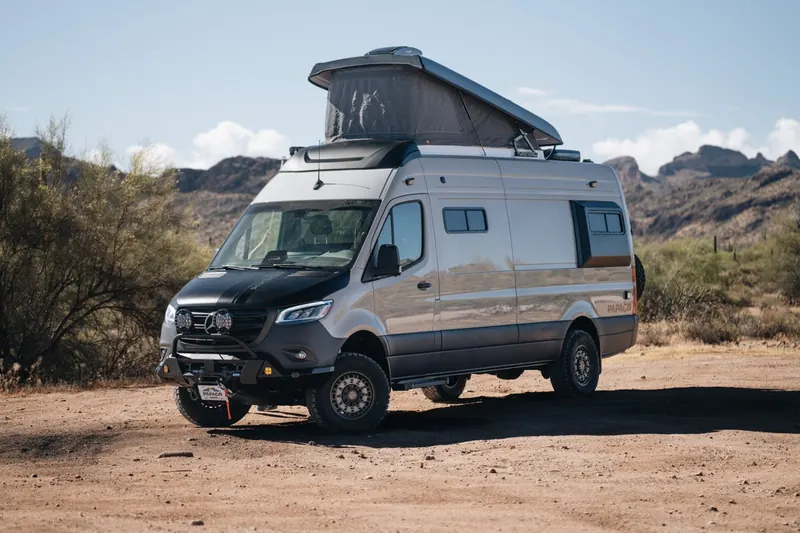

• SCA manual lift pop top
• Vanspeed side capsules
• Swivel passenger and driver seats

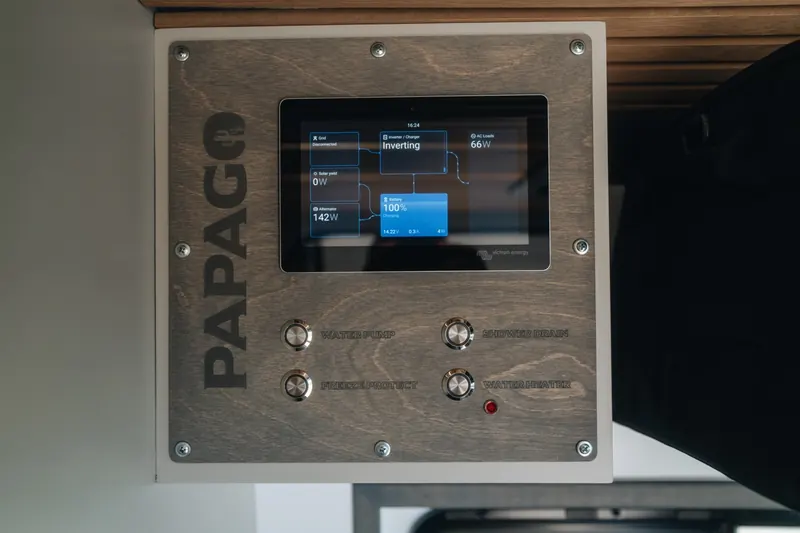

Electrical

• 300W solar system
• 100 amp DC-DC battery charger
• 800Ah Battle Born smart lithium iron phosphate battery
• 3000W pure sine wave inverter/charger
• 5x 110V electrical outlets with USB-A and USB-C
• 1x 110V GFCI outlet on side of control panel
• Additional switched GFCI outlet for Bosch
• 30 amp shore power plug-in

Plumbing

• 33 gallon over-the-wheel-well freshwater tank
• Water level sensor
• Freshwater heating pad
• Greywater system with heating pad

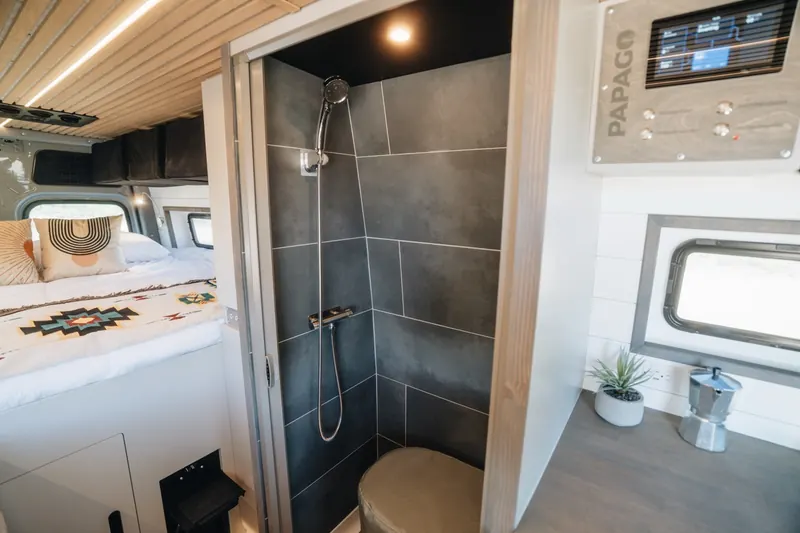

• Indoor tiled shower
• Quick connect outdoor shower
• Electric water heater
• Laveo dry flush toilet with internal battery
• Anti-slip grip pad under toilet
• Rain cover for toilet
• Bemiso shower mat with suction cups

Heating and cooling

• Premium insulation package with Havelock wool
• Foam insulation on all PEX plumbing lines and fittings
• Exterior pipe insulation for under-van plumbing
• RecPro tank heater pad on greywater tank
• RecPro tank heater pad on freshwater tank
• Maxxair Deluxe ceiling vent fan with remote
• 12V roof mounted air conditioner with remote
• Espar diesel powered cabin heater

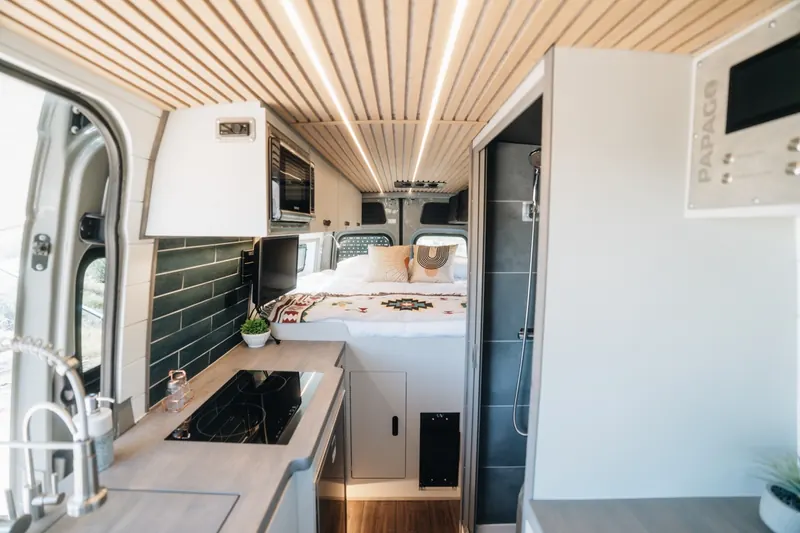

Kitchen

• Acacia butcher block countertop

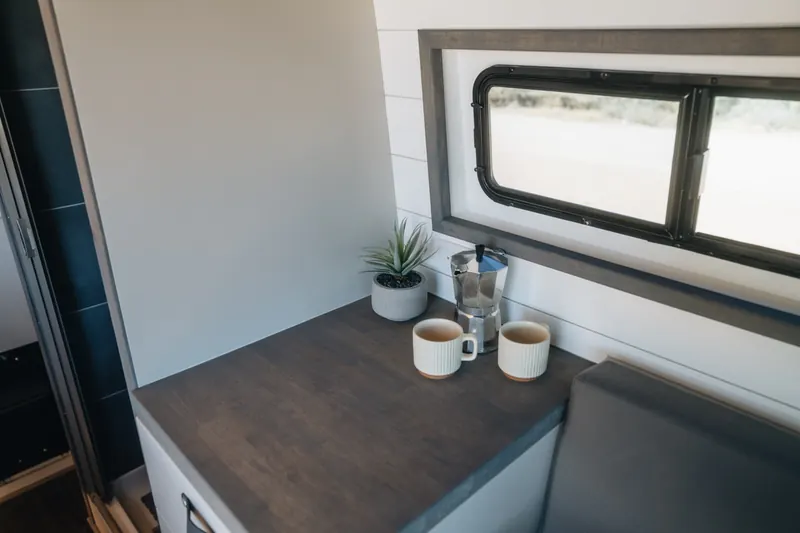

• Flip-up end counter

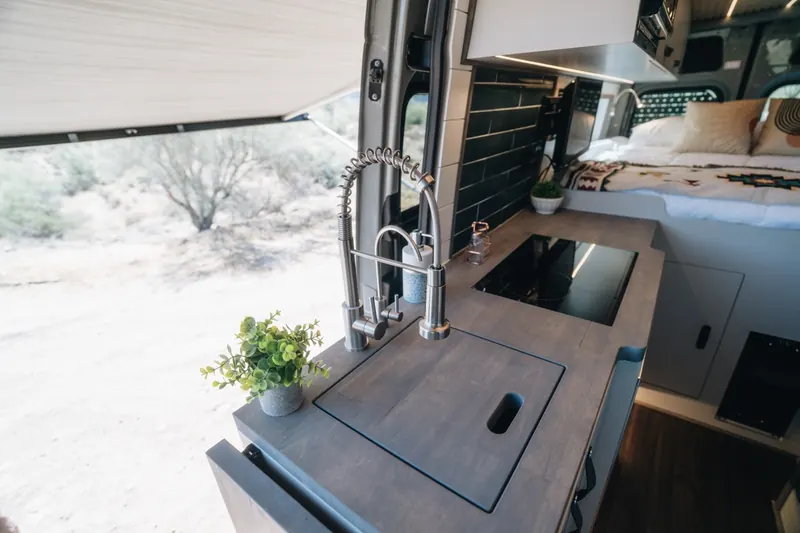

• Stainless steel undermount sink
• Flush butcher block sink insert

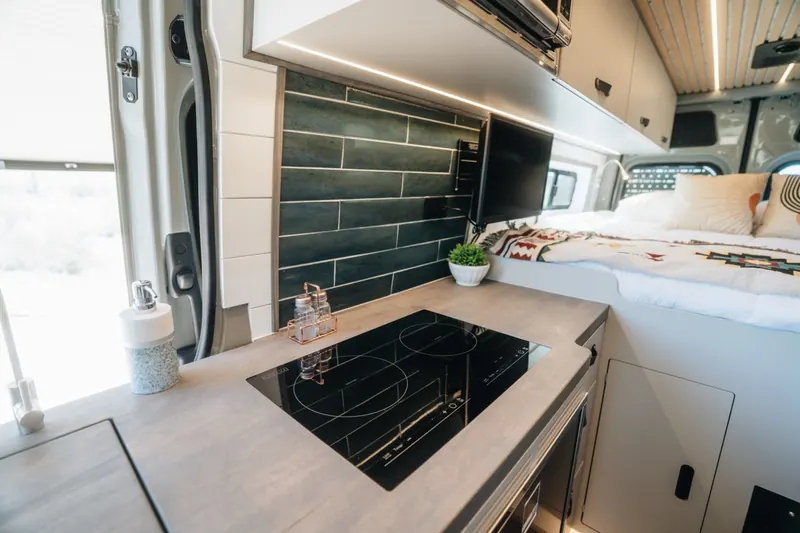

• Built-in double burner induction cooktop
• Isotherm Cruise 130 refrigerator
• 700W microwave
• Guzzle H2O Stealth 5 water purification unit

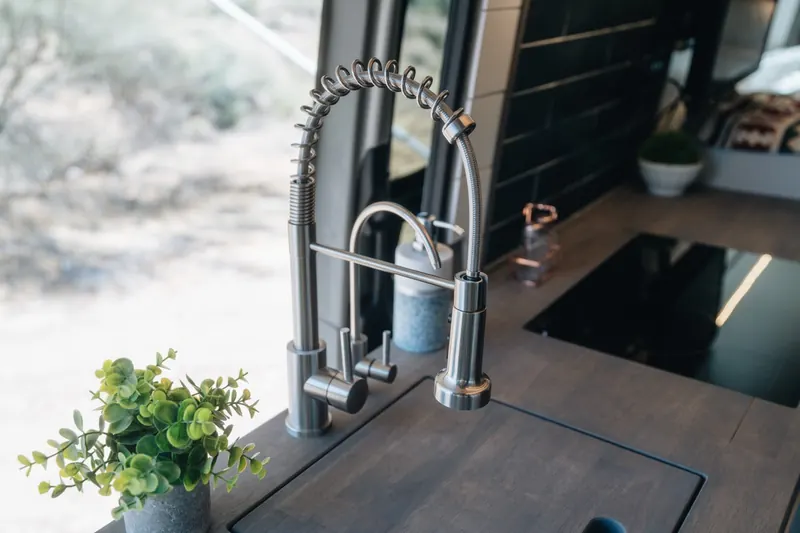

• Brushed nickel WeWe faucet

Interior and design

• Natural Oak acoustic slat panel ceiling with gray felt
• Integrated ceiling strip lighting
• Painted shiplap siding
• Luxury vinyl plank wood style flooring
• Advanced interior lighting package
• LED strip under kitchen kicker
• Separate shower light
• Separate garage light
• 2 reading lights wired independently
• Custom shower tile
• Custom backsplash tile

Storage

• 3 overhead cabinets
• 3x 24 inch Van Wife Components hanging bags
• 18 inch Van Wife Components hanging bag
• 24 inch under counter double-door cabinet
• 15 inch under counter drawer cabinet
• 20 inch shower depth drawer cabinet
• Floor-to-ceiling closet with shelves and clothes hanging rod
• Bench seat with hinged lid storage
• FVCO Sprinter van step extension shoe cubby
• Headliner shelf
• 2 FVCO heavy duty pull out trays under bed
• FVCO rear door molle panels

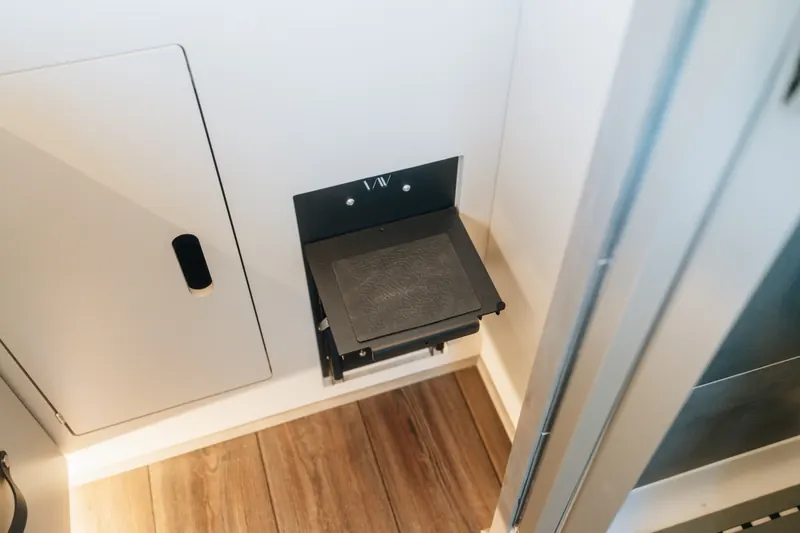

• CA Vans folding bed step

Sleeping and living

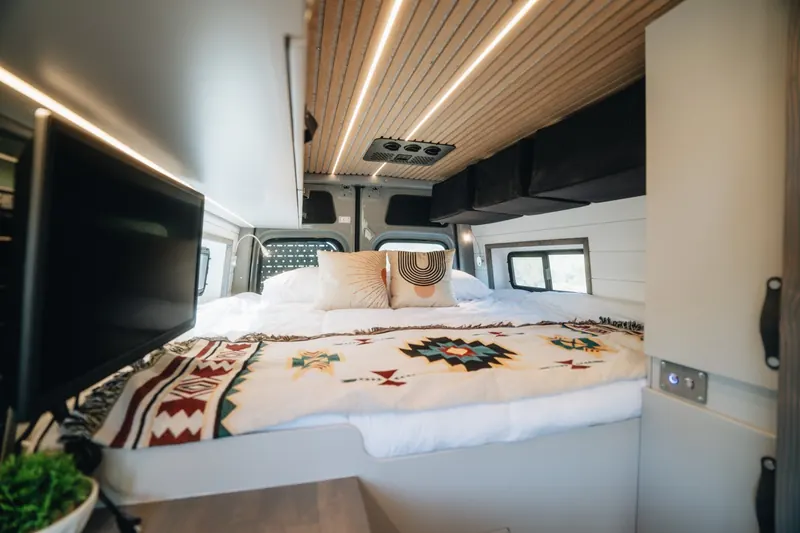

• King memory foam mattress
• Mattress cut to 75 inches front-to-back

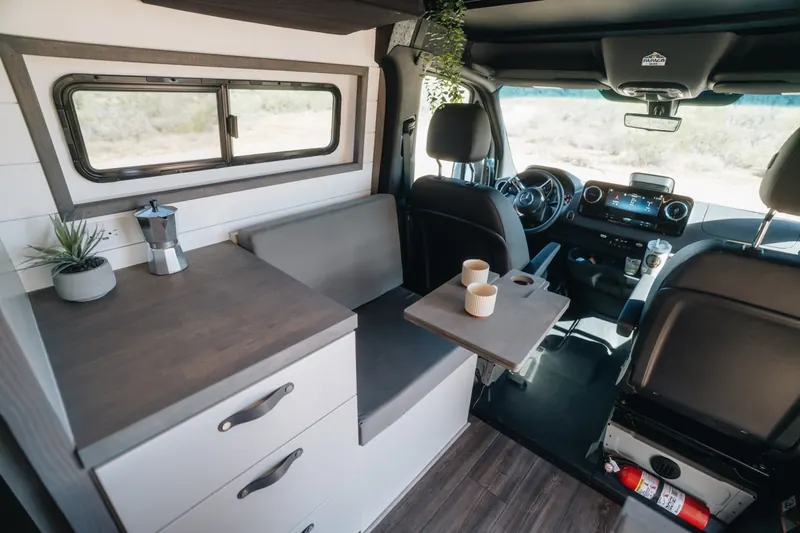

• Lagun adjustable swivel table
• Passenger side sliding door T-vent window
• Driver side CRL 10×33 half slider bunk window
• Rear cargo door solid glass windows
• VIZIO 24 inch smart TV with locking swivel bracket
• Magnetic blackout window coverings, set of 10

Technology and connectivity

• Starlink In Motion High Performance Kit
• VIZIO 24 inch smart TV
• USB-A and USB-C charging outlets
• 30 amp shore power connection

Exterior and upgrades

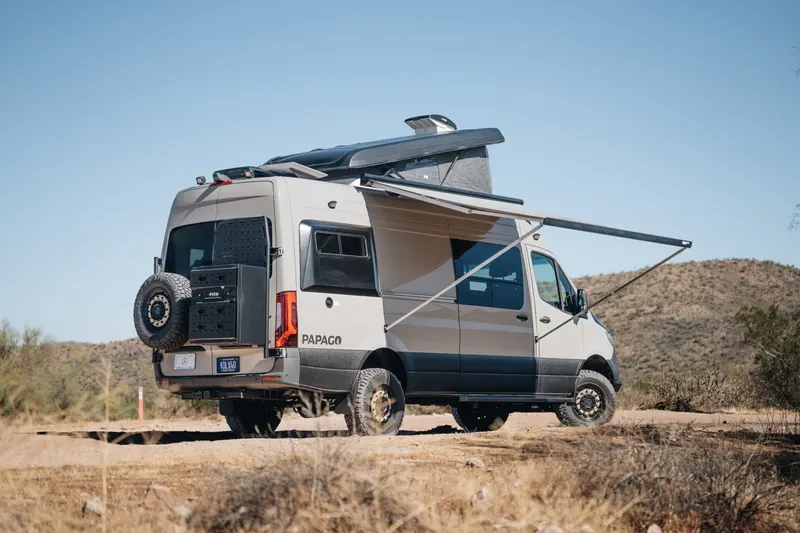

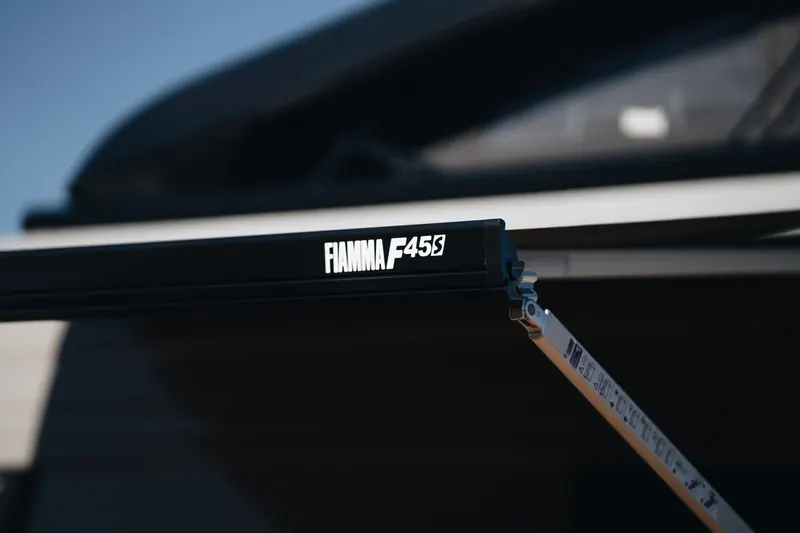

• Manual crank awning with Papago awning brackets

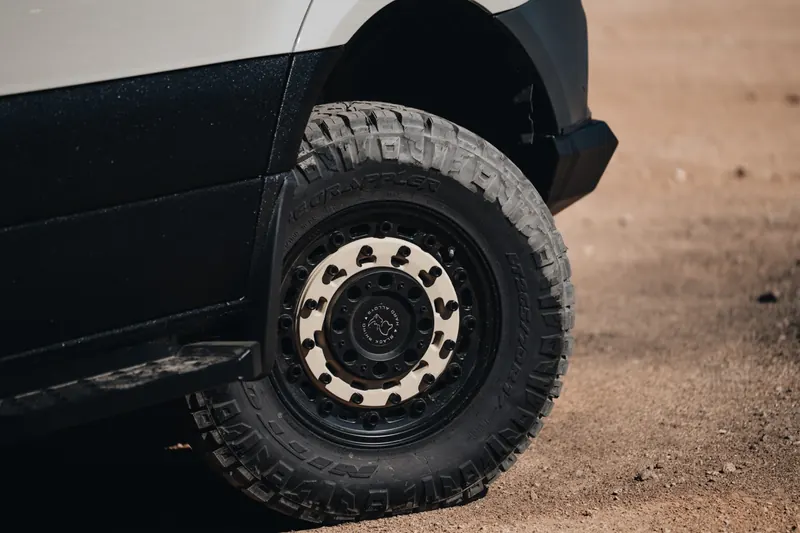

• All-terrain wheels and tires, set of 5
• Van Compass Stage 4.3 suspension upgrade
• Steel Craft side steps
• FVCO front bumper with AWD skid plate
• FVCO bull bar
• Integrated amber LED light pods
• Warn 12S winch
• 2 D-rings

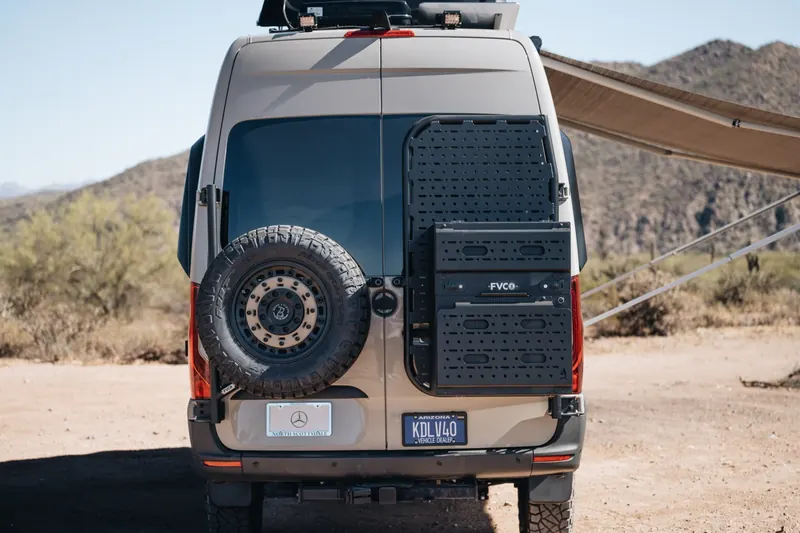

• FVCO tire carrier and ladder
• FVCO rear door platform
• FVCO rear storage box
• S&B 45 gallon extended range fuel tank
• Tuff Skin truck bed liner protection
• Exterior perimeter lighting package
• KC SlimLite 8 LED light bundle
• Matte black pop top
• Matte black side capsules
• Matte black hood

Safety

• Carbon monoxide detector
• Smoke detector
• Fire extinguisher
• Magnetic blackout window coverings

Interior colors and finishes

• Flooring: Glendale Pine
• Countertops, tables, trim, and control panels: Gun Metal stain
• Slat ceiling: Natural Oak with Gray Felt
• Cabinet paint: Mindful Gray
• Wall paint: Papago Soft White
• Fixtures: Stainless
• Switches and reading lights: Stainless
• Outlets: White with black outlet on backsplash only
• Door pulls and knobs: Gray Leather with Stainless Knobs
• Shower tile: Pier Blue
• Shower grout: Platinum
• Backsplash tile: Typhoon Blue 3 inch x 18 inch Subway Gloss Porcelain
• Backsplash grout: Platinum
• Cushion fabric: Canvas Charcoal
• Rims: Arsenal Sand on Black
• Pop top, side capsules, and hood: Matte Black
