Iron Nomad

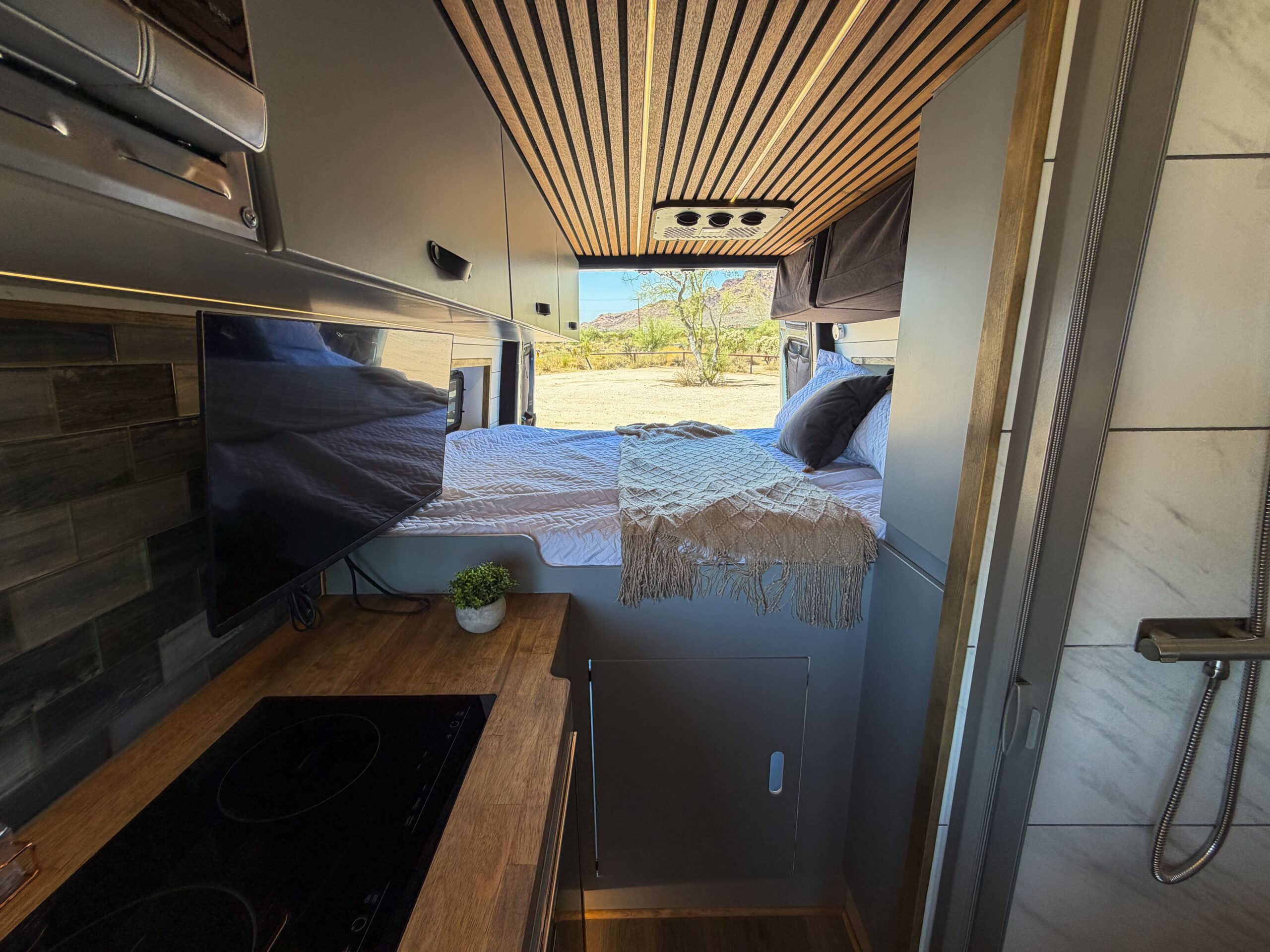

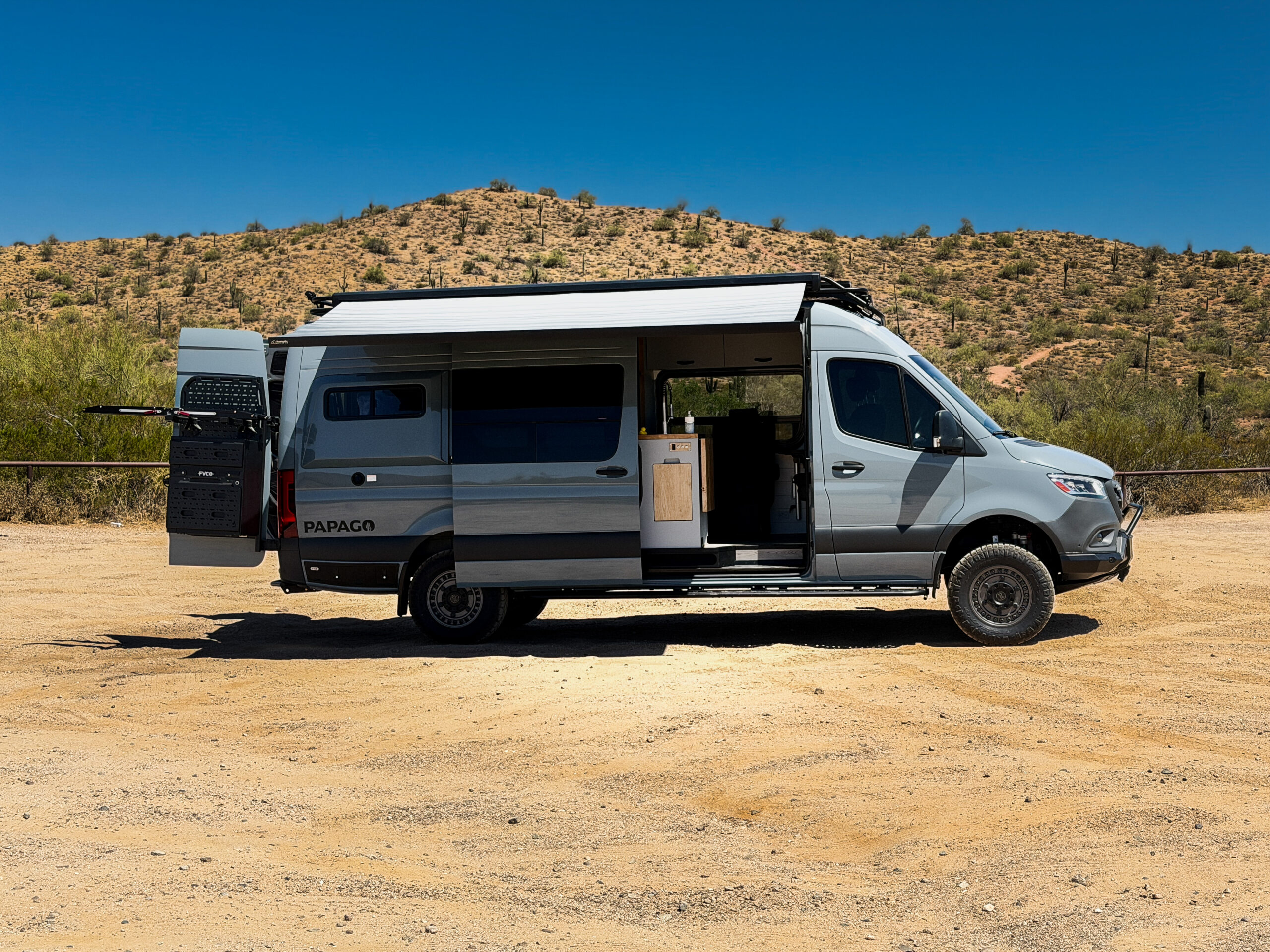

This 2025 Sprinter AWD 170 build in our El Capitan Tier is built for long road trips, camping, and comfortable travel. With 800Ah Battle Born lithium power, solar, roof A/C, diesel heat, a 33 gallon water system, tiled indoor shower, full kitchen, Starlink, queen bed, exterior storage, and upgraded adventure gear, it’s designed to feel comfortable while still being ready for the road.

Platform

• 2025 Mercedes Sprinter 170 AWD
• El Capitan build tier, level 5 of 5
• Extended 170 wheelbase layout
• Vehicle body flares

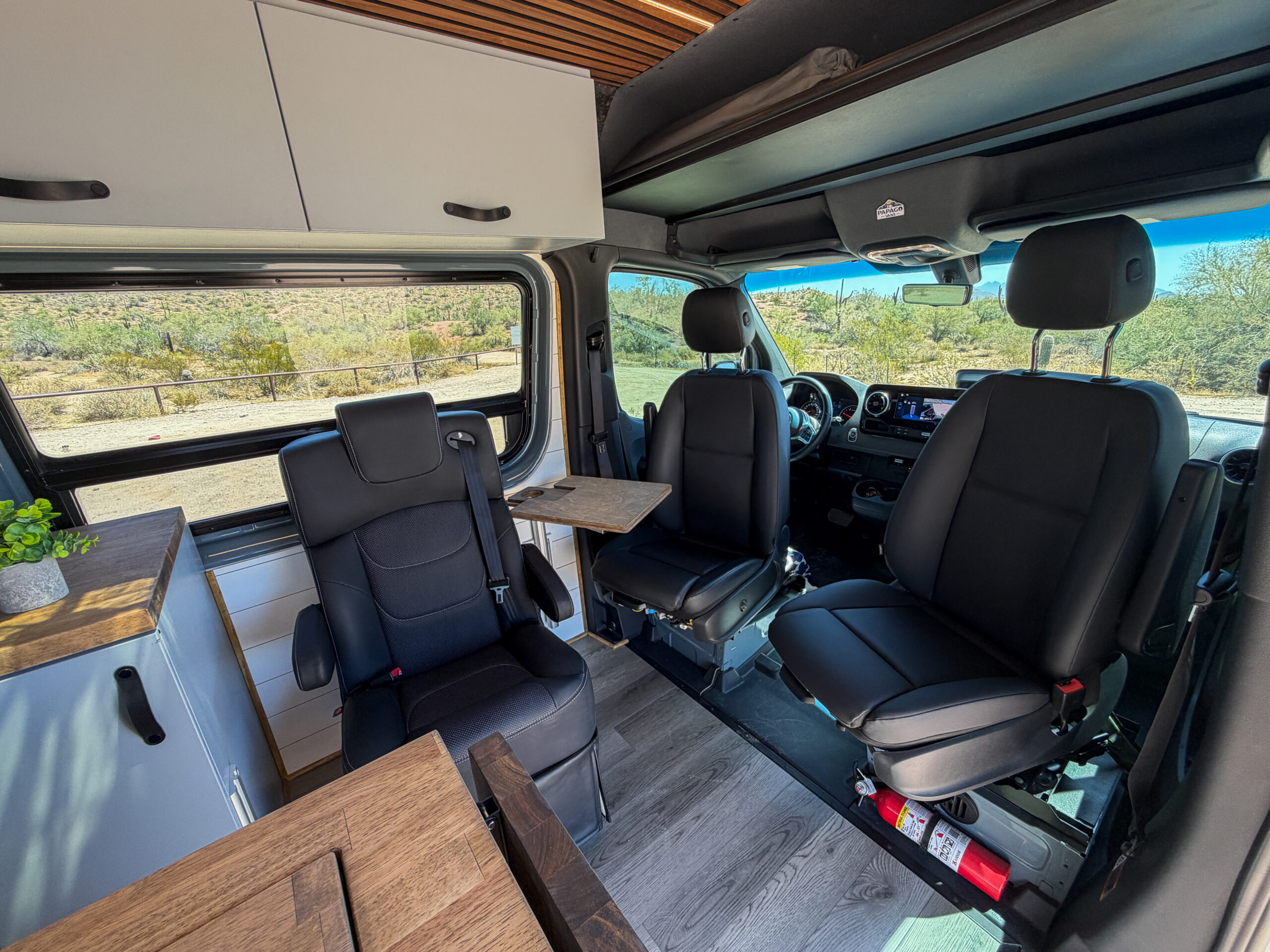

• Swivel passenger and driver seats

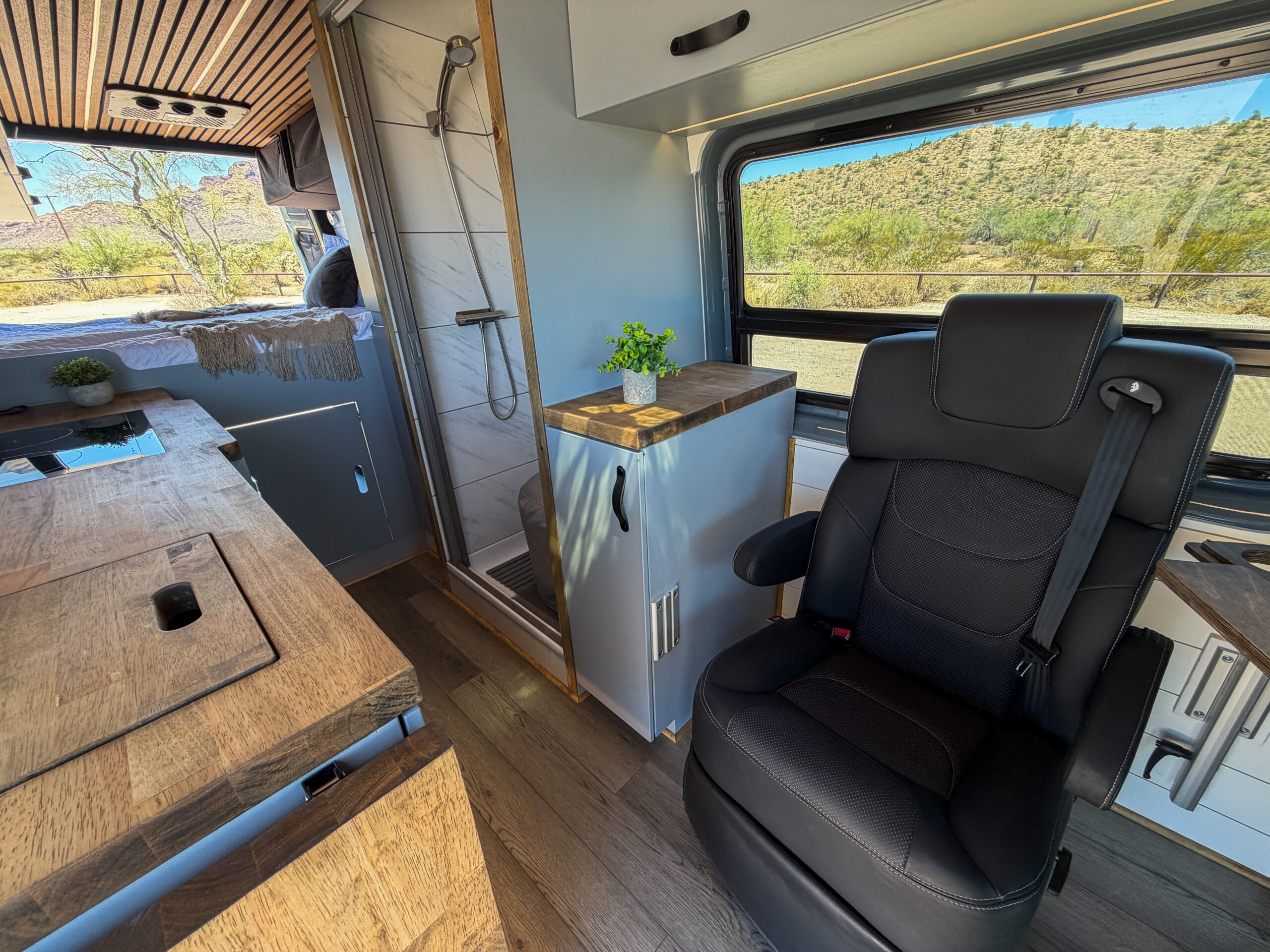

• CVC 22 inch VIP captain seat with swivel base

Electrical

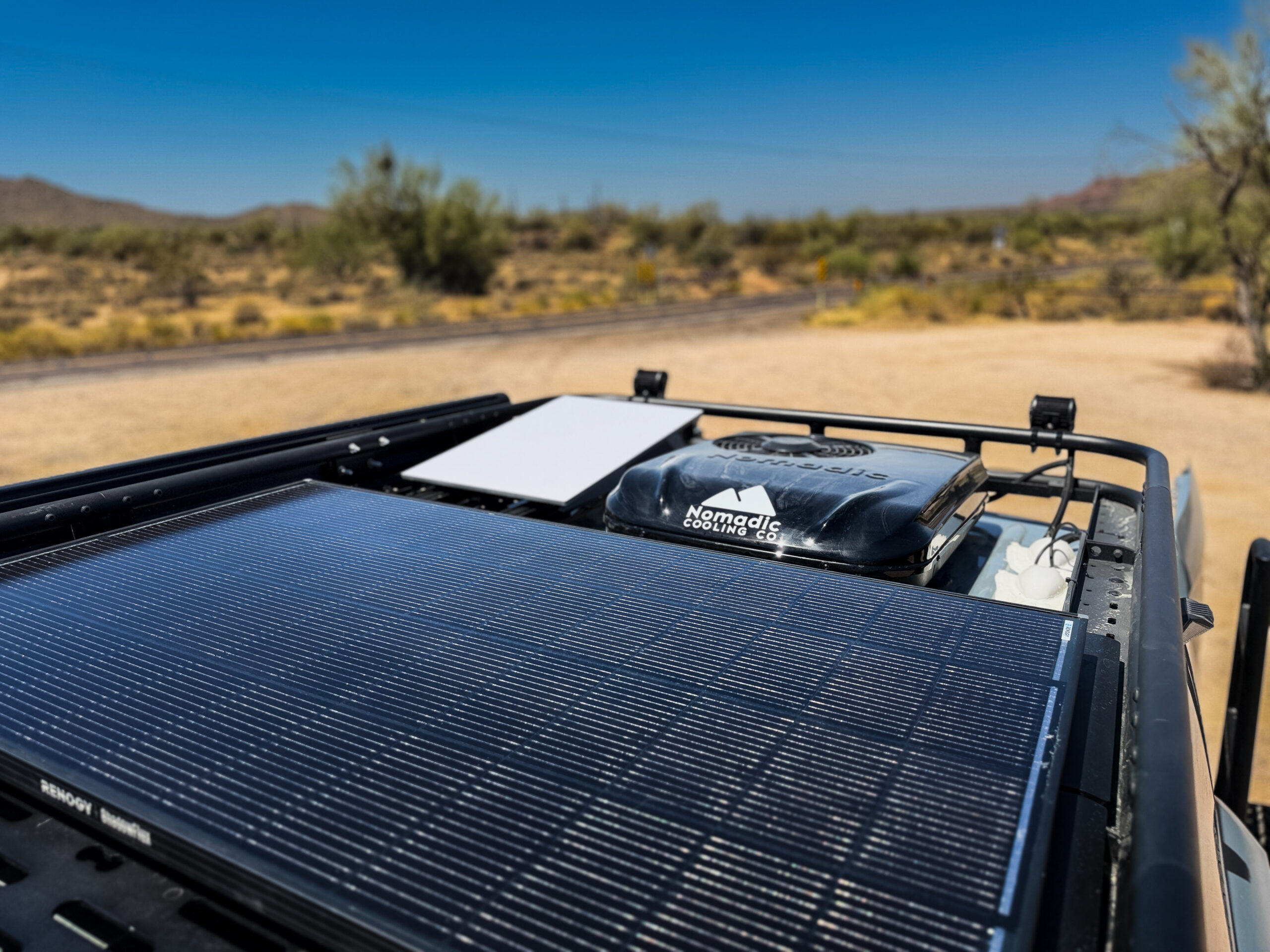

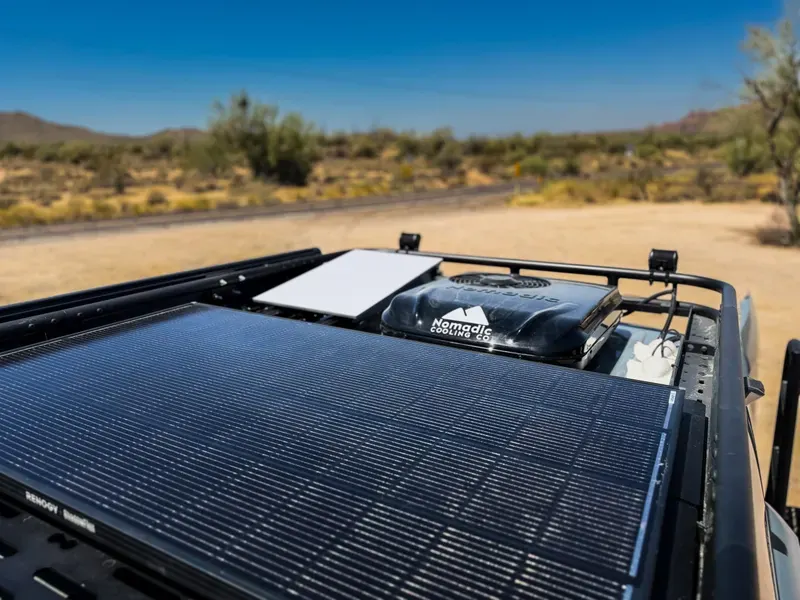

• 400W solar system
• 50 amp DC-DC battery charger
• 800Ah Battle Born smart lithium iron phosphate battery
• 3000W pure sine wave inverter/charger
• 6x 110V electrical outlets with USB-A and USB-C
• 1x 110V GFCI outlet on side of control panel
• Additional switched GFCI outlet for Bosch
• 30 amp shore power plug-in

Plumbing

• 33 gallon over-the-wheel-well freshwater tank
• Water level sensor
• Freshwater heating pad
• Greywater system with heating pad

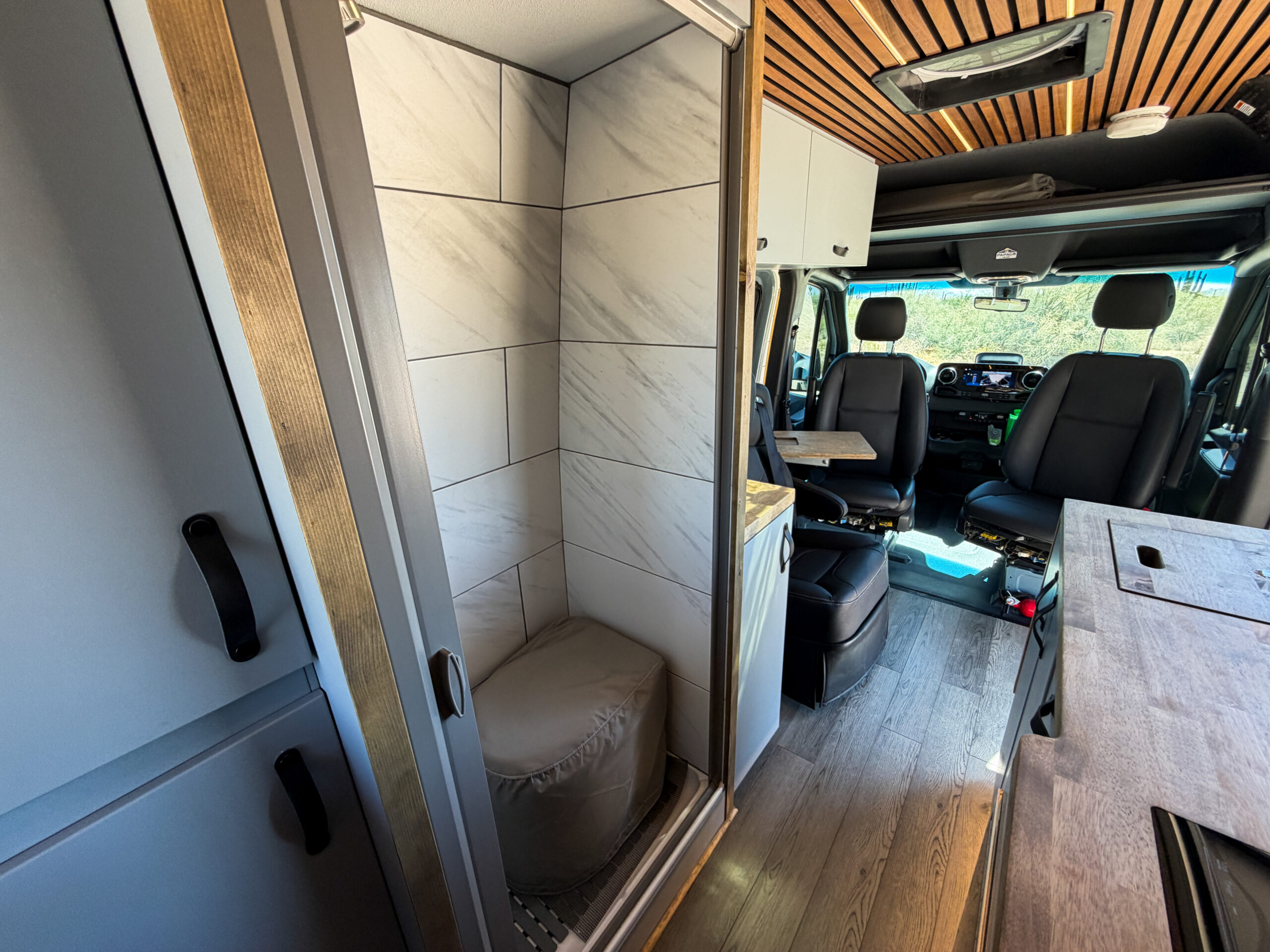

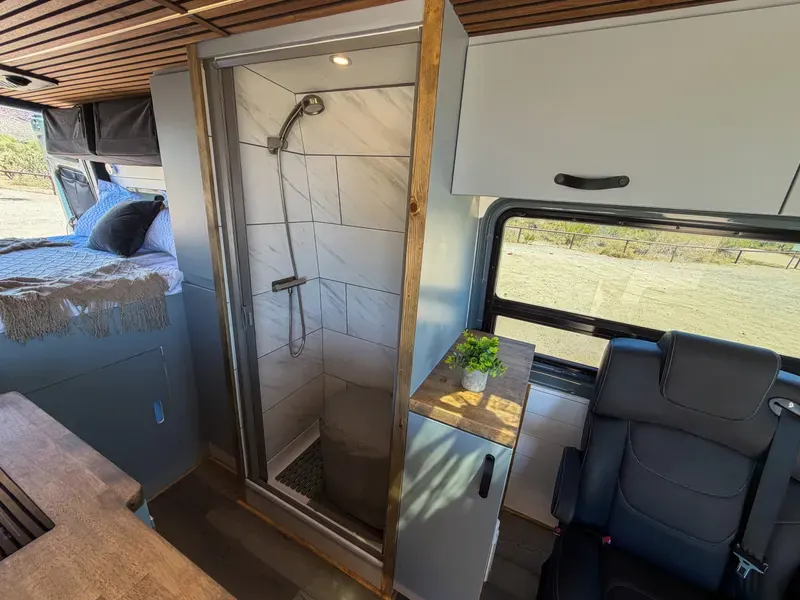

• Indoor tiled shower
• Quick connect outdoor shower
• Electric water heater
• Laveo dry flush toilet with internal battery
• Anti-slip grip pad under toilet
• Rain cover for toilet
• Bemiso shower mat with suction cups

Heating and cooling

• Premium insulation package with Havelock wool
• Foam insulation on all PEX plumbing lines and fittings
• Exterior pipe insulation for under-van plumbing
• RecPro tank heater pad on greywater tank
• RecPro tank heater pad on freshwater tank

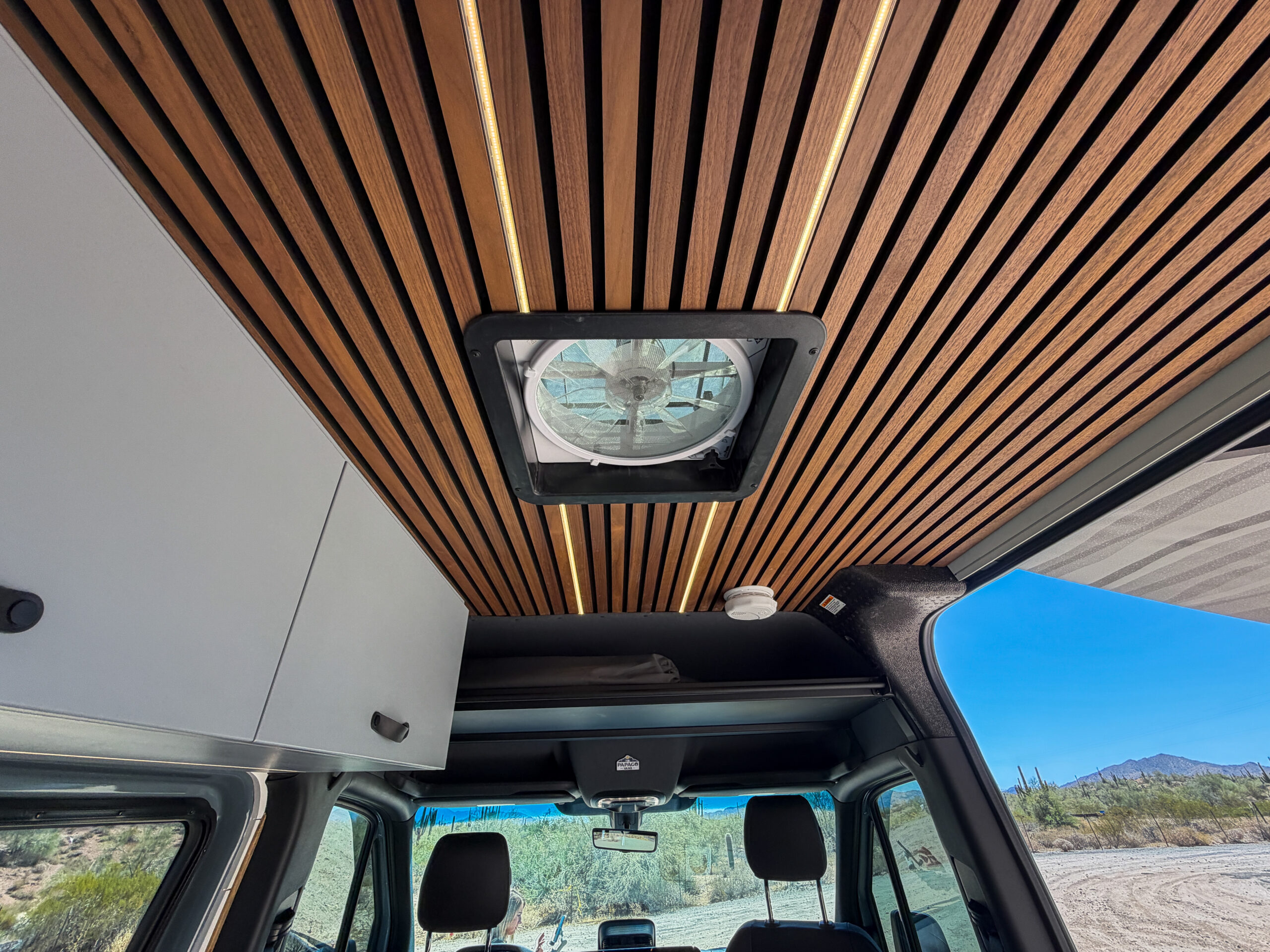

• Maxxair Deluxe ceiling vent fan with remote

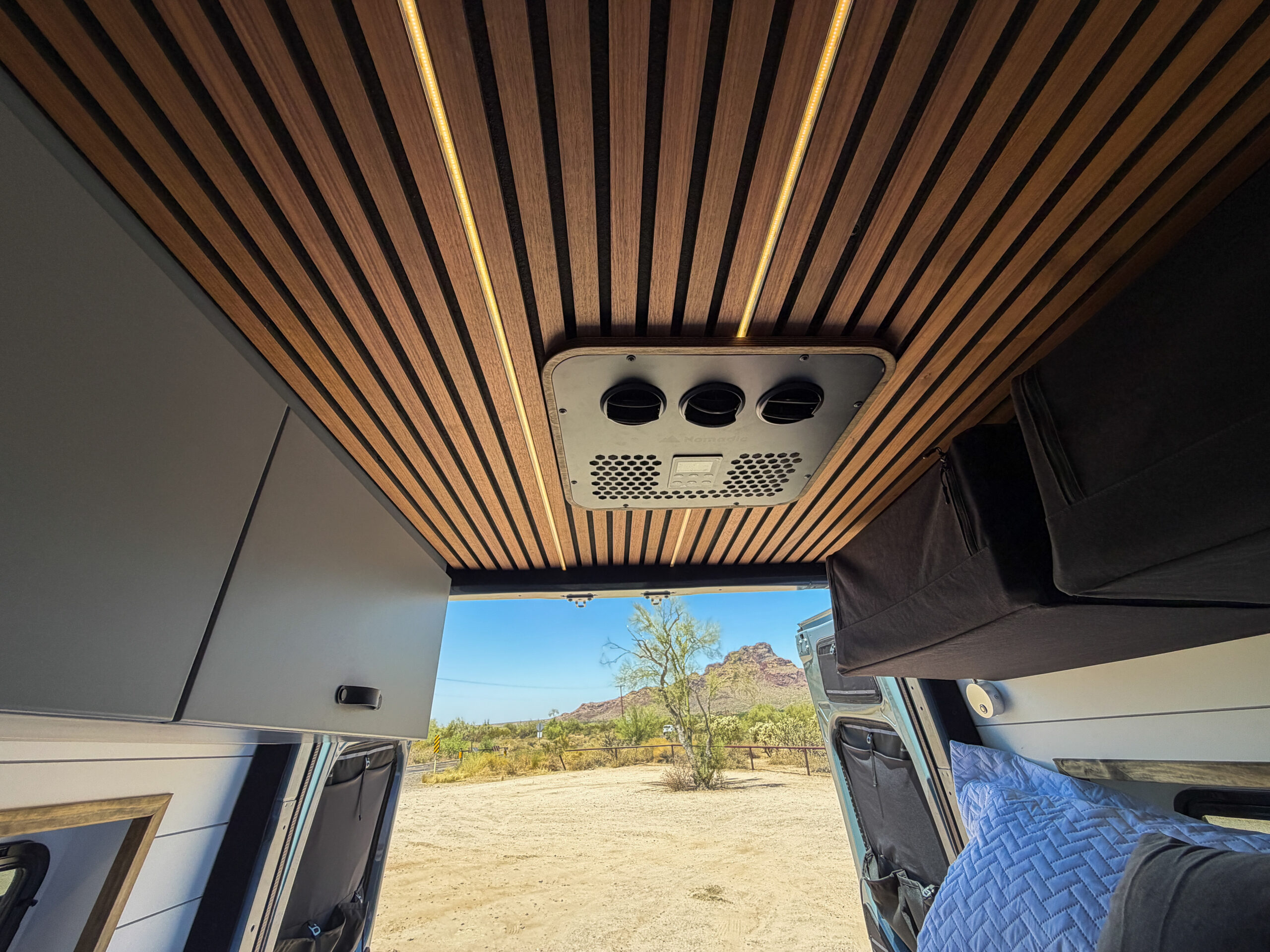

• 12V roof mounted air conditioner with remote
• Espar diesel powered cabin heater

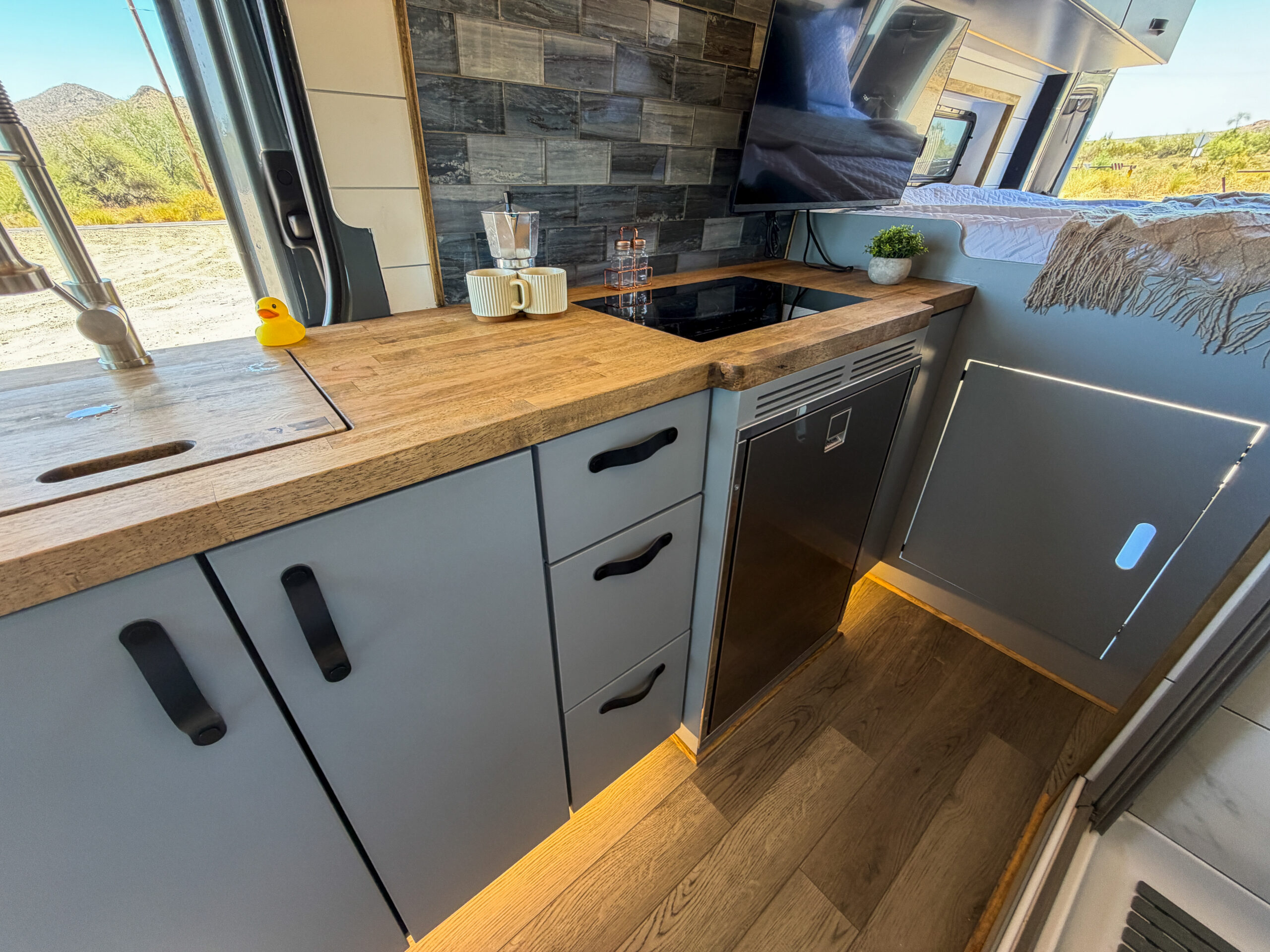

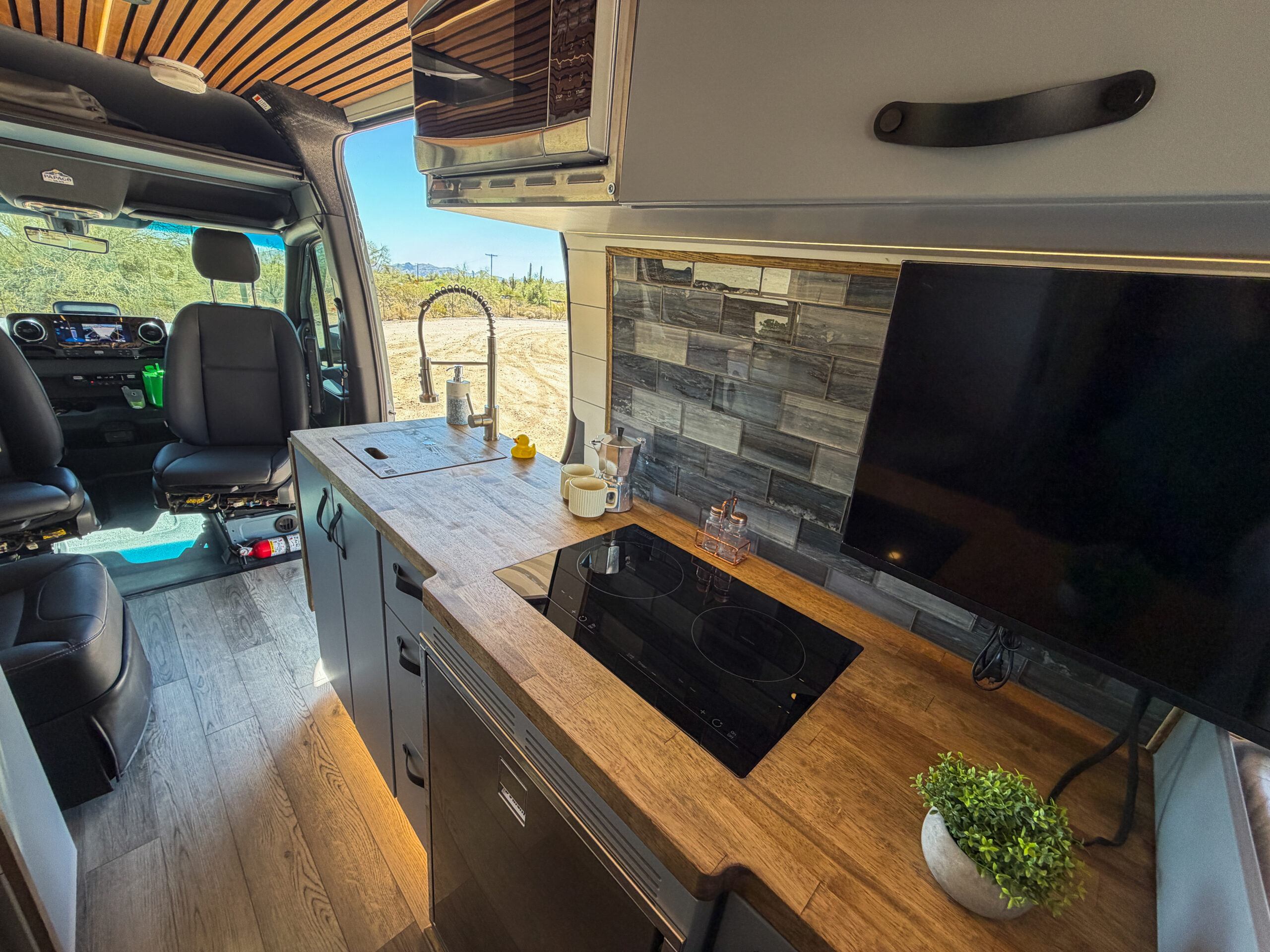

Kitchen

• Acacia butcher block countertop
• Pop-up end counter
• Stainless steel undermount sink
• Flush butcher block sink insert
• Built-in double burner induction cooktop
• Isotherm Cruise 130 refrigerator
• 700W microwave

Interior and design

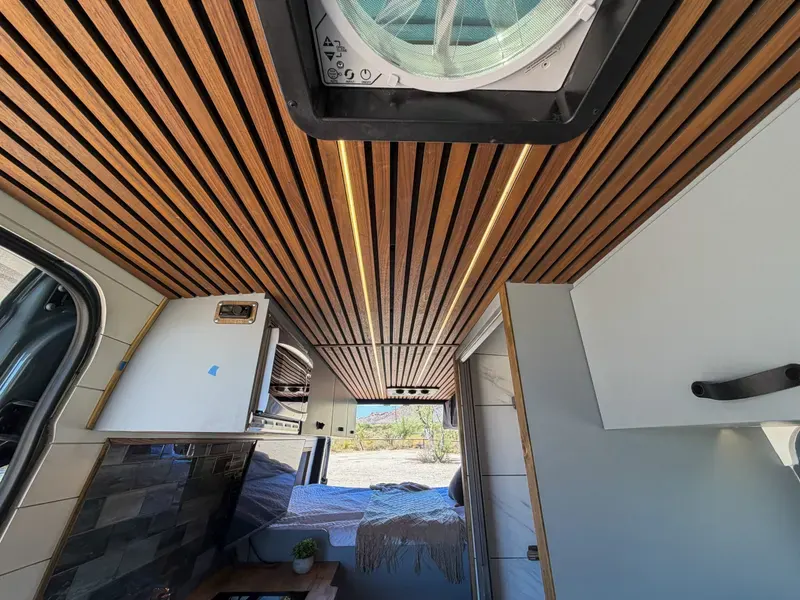

• Natural Walnut acoustic slat panel ceiling with black felt
• Integrated ceiling strip lighting
• Painted shiplap siding
• Luxury vinyl plank wood style flooring
• Advanced interior lighting package
• LED strip under kitchen kicker
• Garage light
• 2 reading lights wired independently
• Custom shower tile
• Custom backsplash tile

Storage

• 5 overhead cabinets
• 2x 24 inch Van Wife Components hanging bags

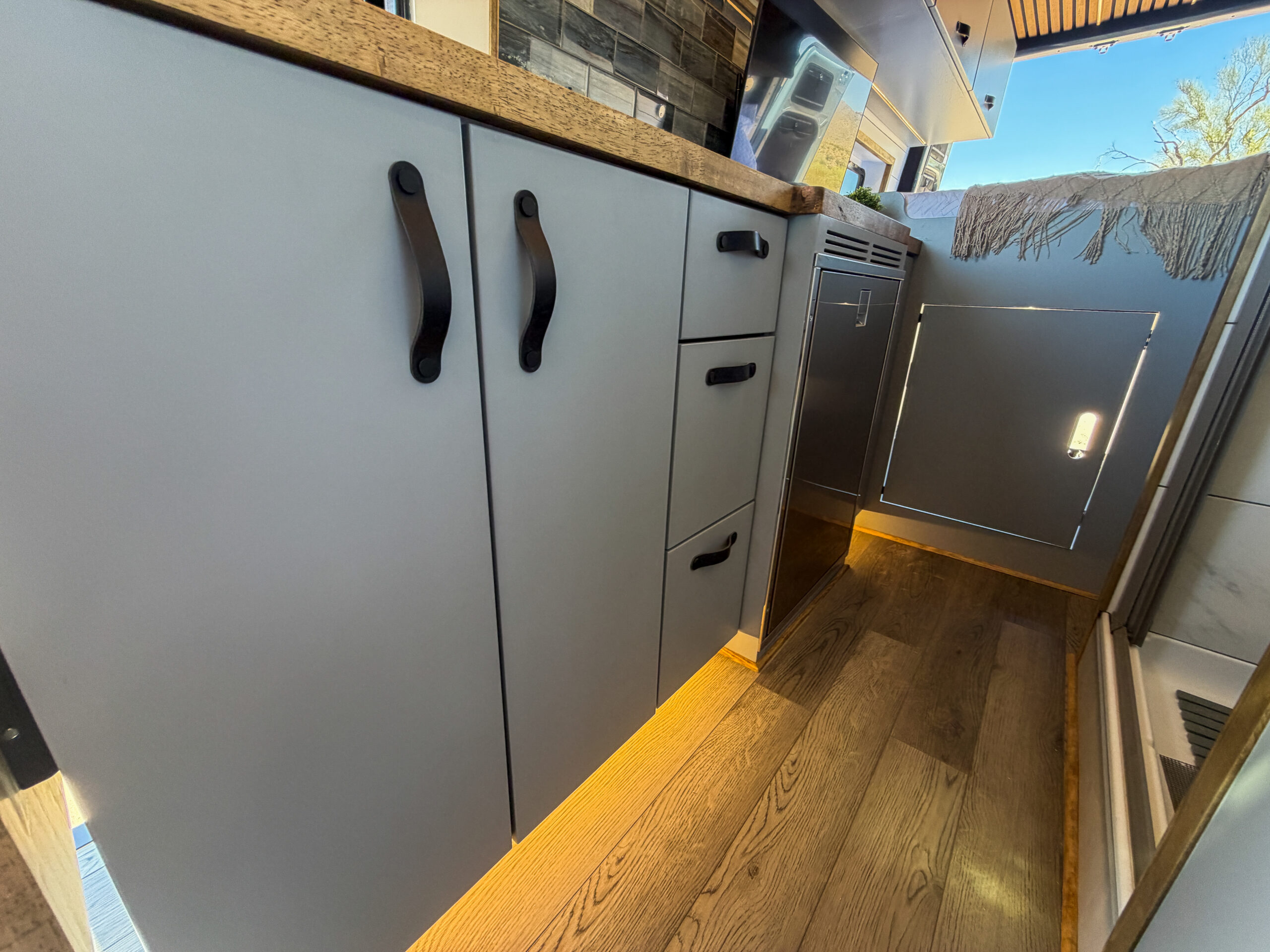

• 24 inch under counter double-door cabinet
• 12 inch under counter drawer cabinet
• 2x 12 inch under counter storage cabinets
• 15 inch floor-to-ceiling closet with shelves and clothes hanging rod
• 2 FVCO heavy duty pull out trays
• FVCO Sprinter van step extension shoe cubby
• Headliner shelf
• Van Essential rear door storage panels

Sleeping and living

• Queen memory foam bed
• 1.5 inch 80/20 aluminum bed frame
• Body flares for extended sleeping space
• Lagun adjustable swivel table
• Extra Lagun wall mount
• Passenger side sliding door T-vent window
• Driver side T-vent window
• No rear door windows
• VIZIO 32 inch smart TV with swivel mount
• Magnetic insulated blackout window coverings, set of 8

Technology and connectivity

• Starlink In Motion High Performance Kit
• VIZIO 32 inch smart TV
• USB-A and USB-C charging outlets
• 30 amp shore power connection

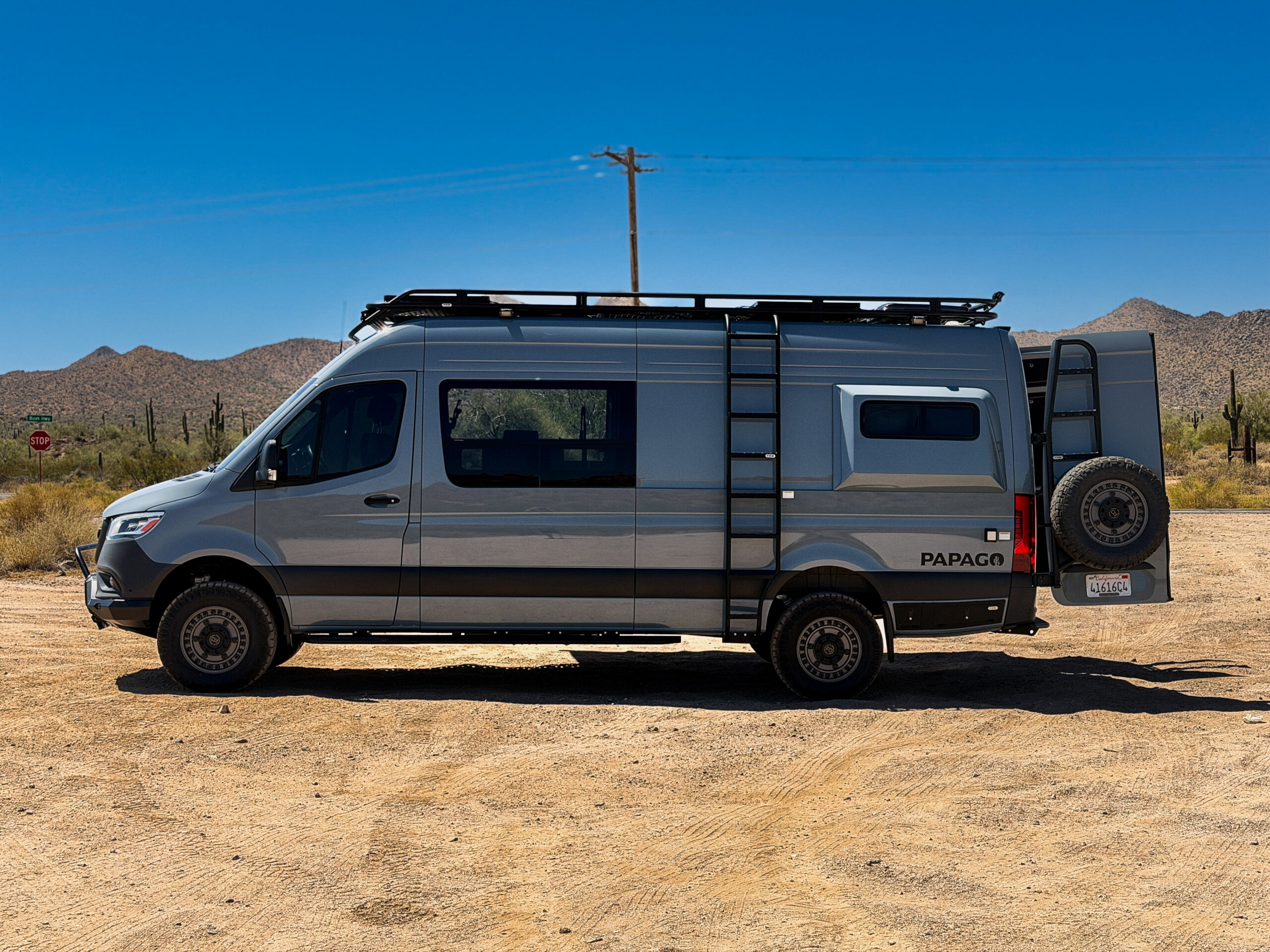

Exterior and upgrades

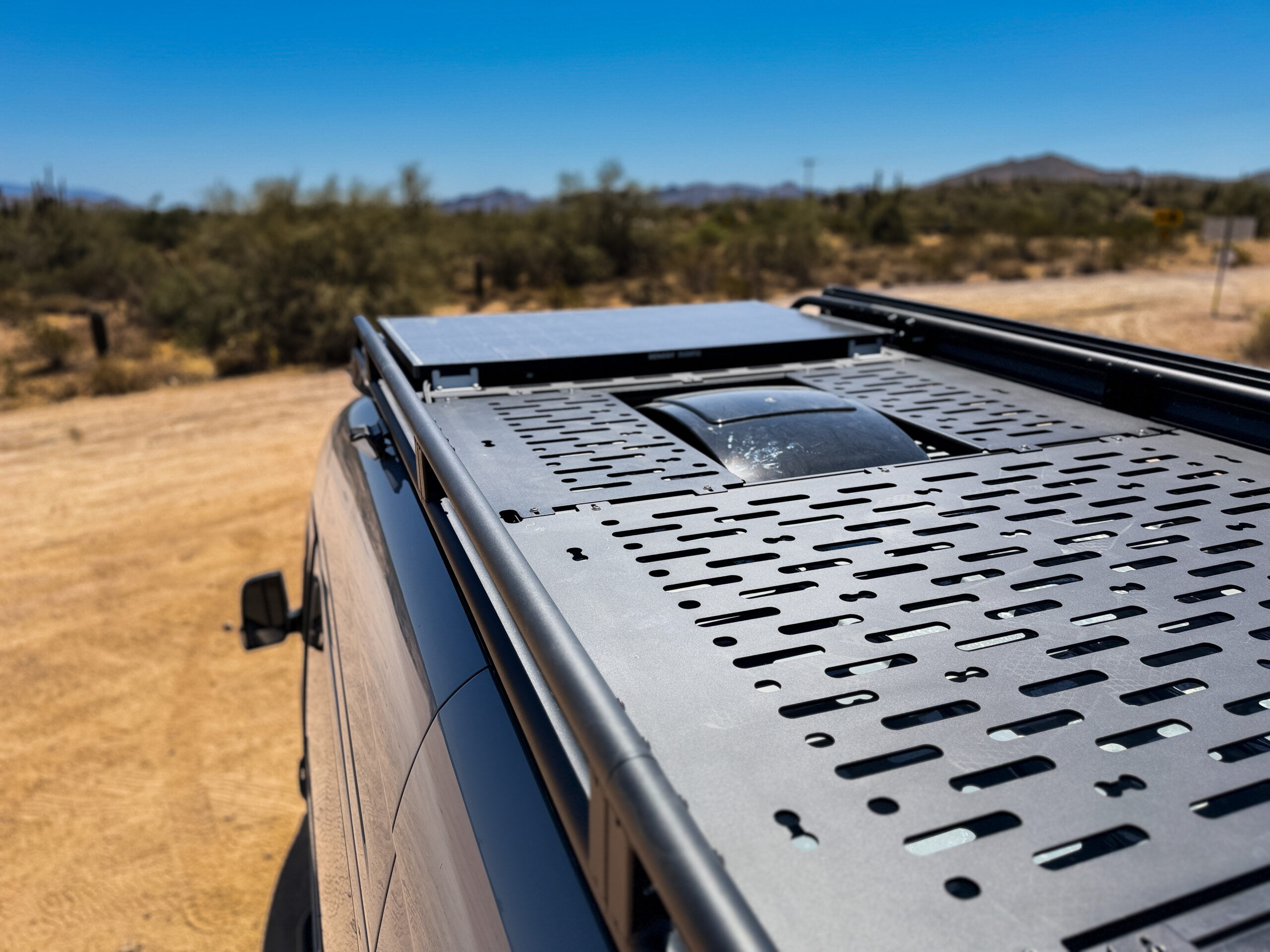

• FVCO Sprinter Safari roof rack
• Drop front roof rack
• Full deck panels
• FVCO wheel wrap side ladder

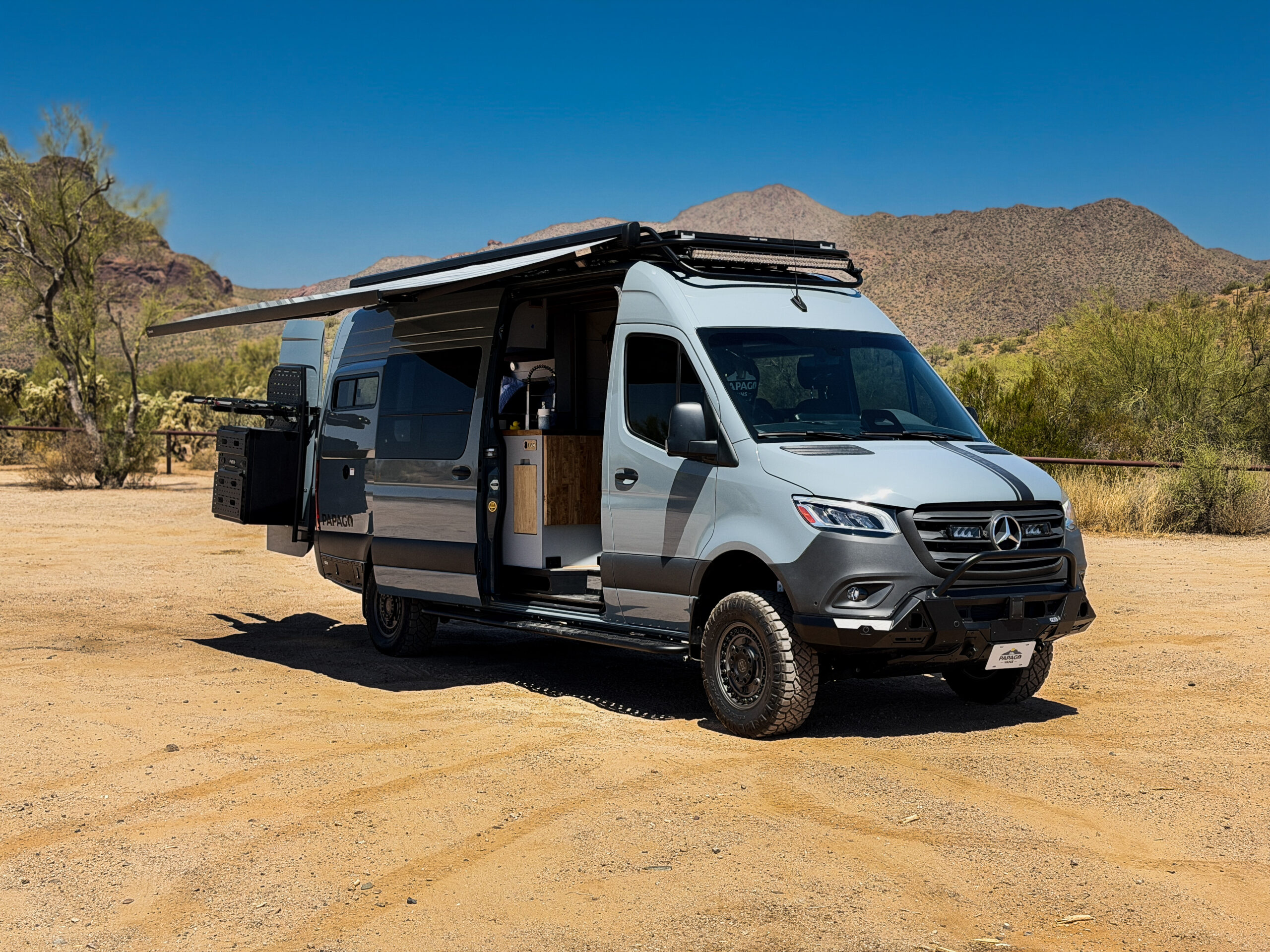

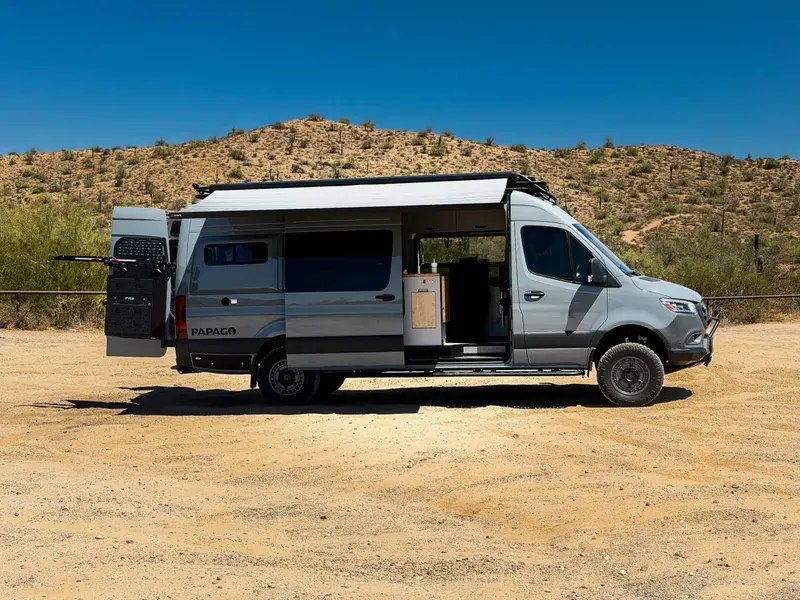

• Electric awning with integrated LED lights

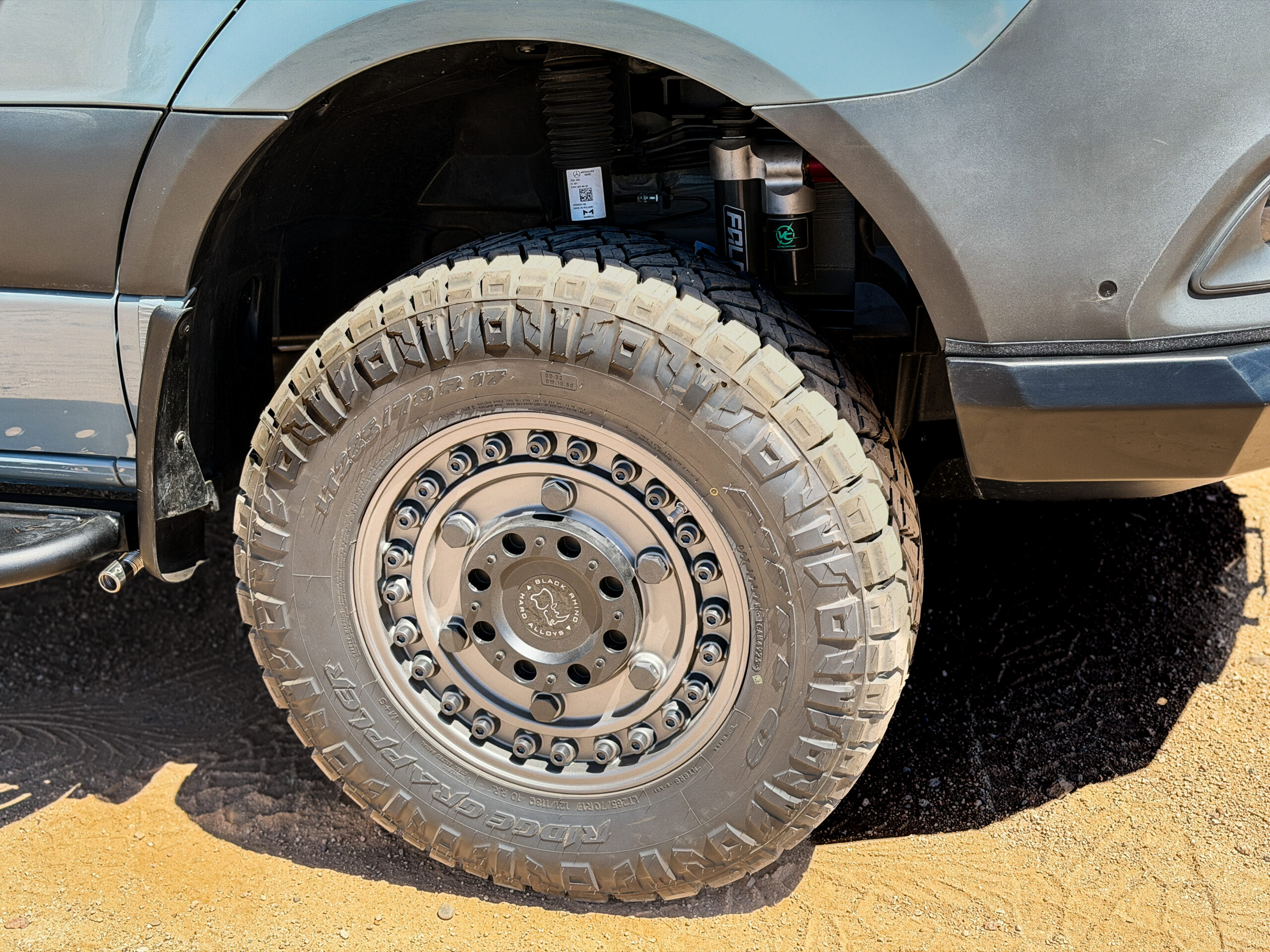

• All-terrain wheels and tires, set of 5
• Van Compass Stage 4.3 suspension upgrade
• Mud flap relocation kit

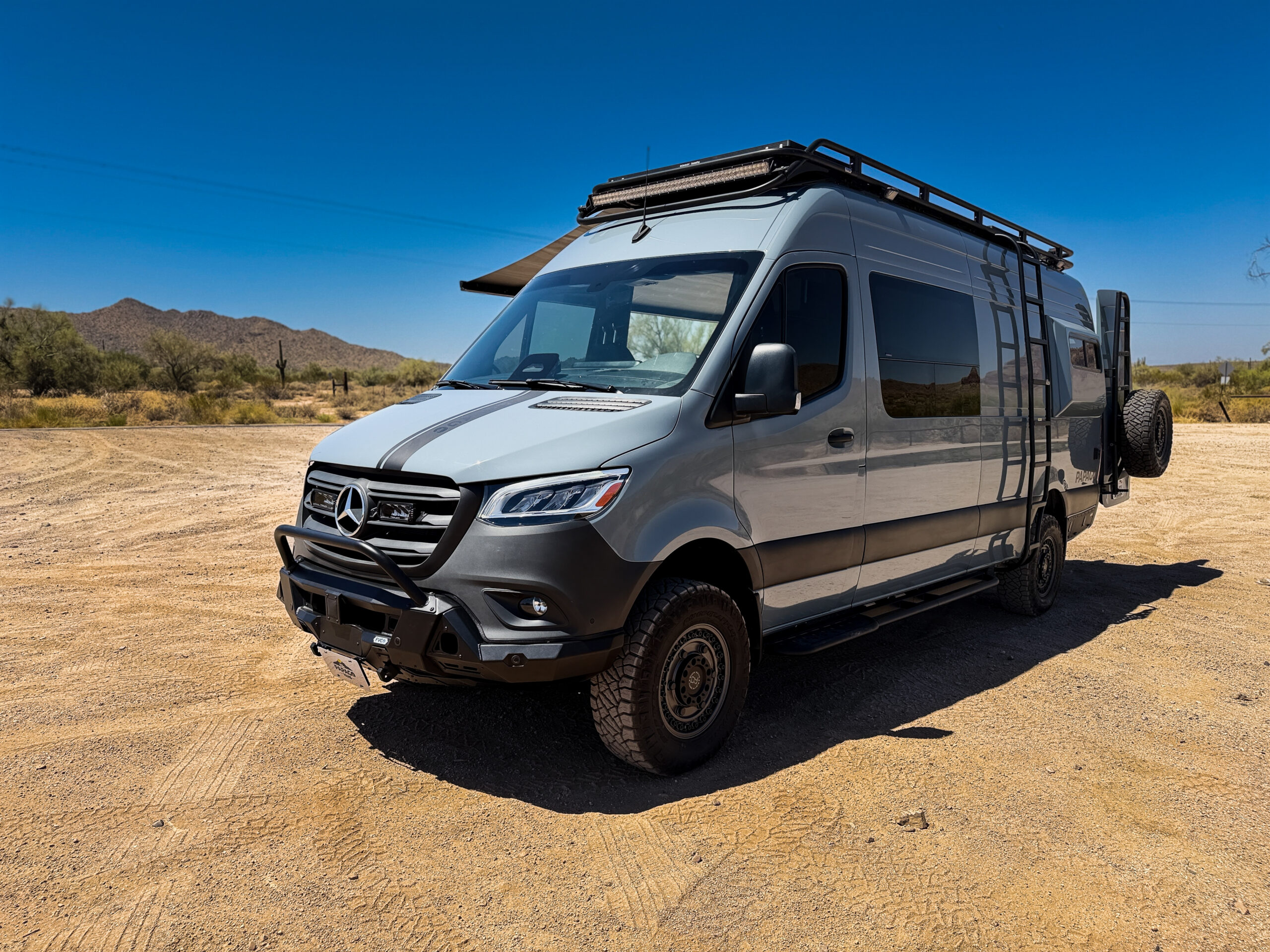

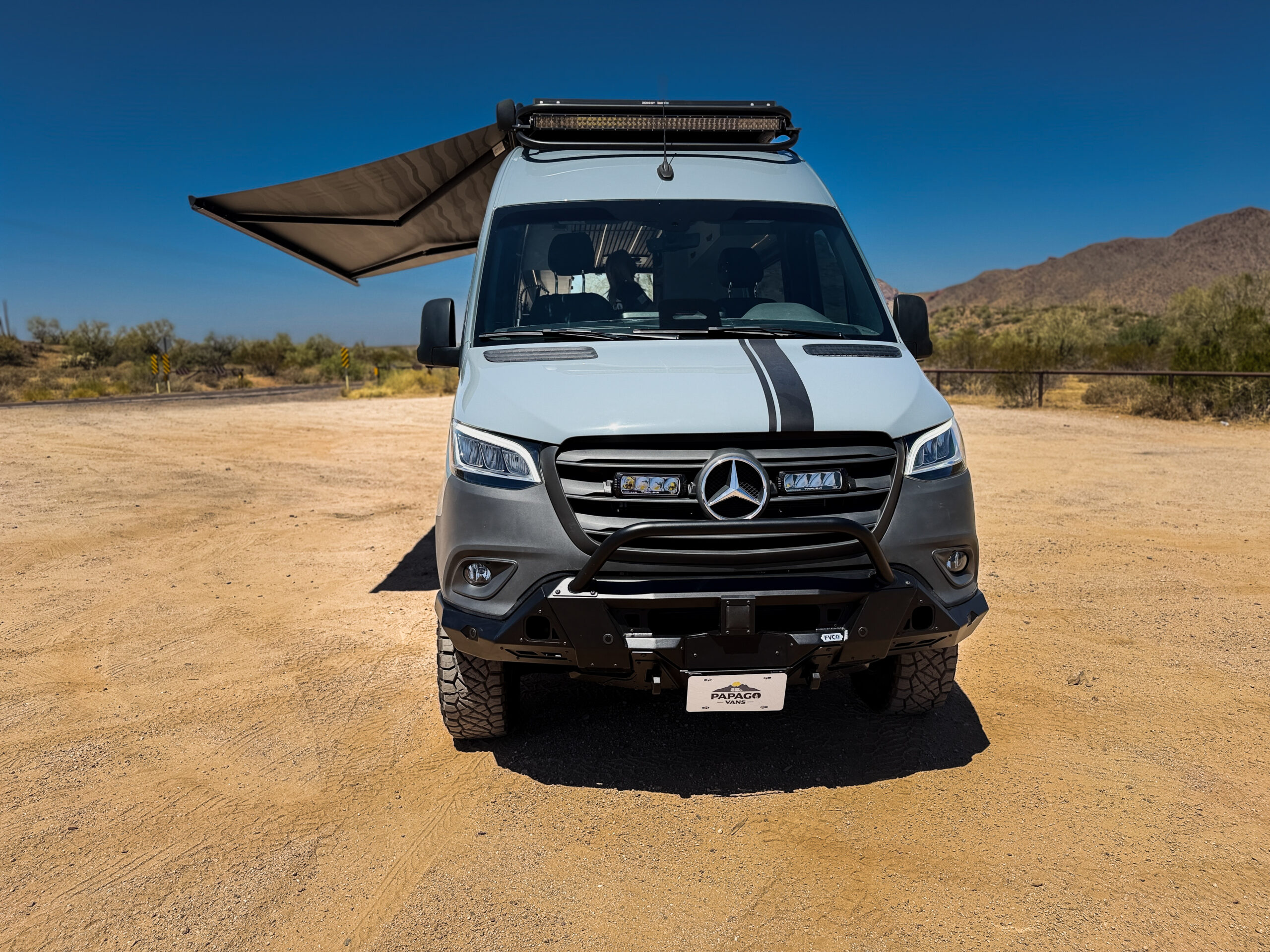

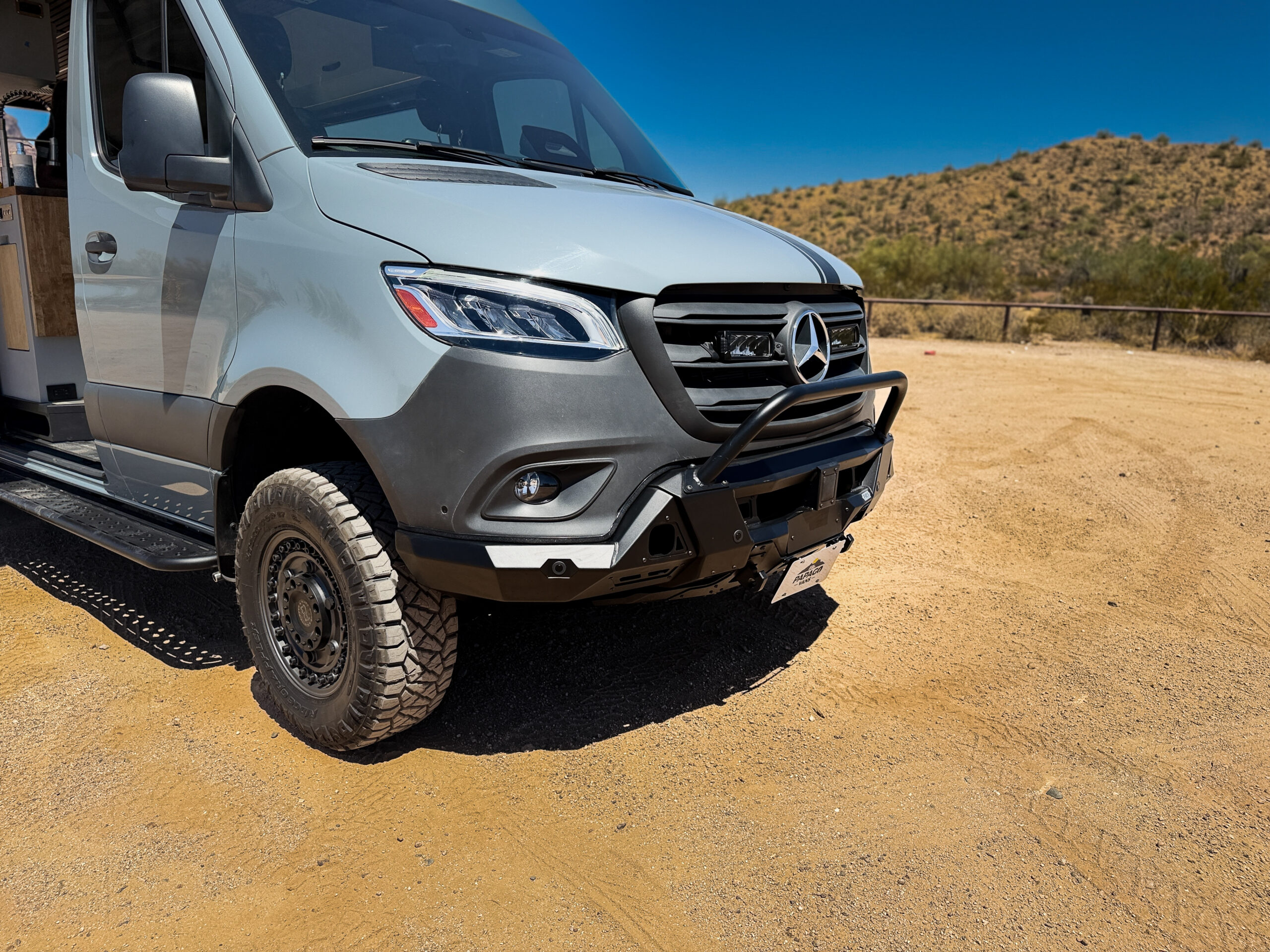

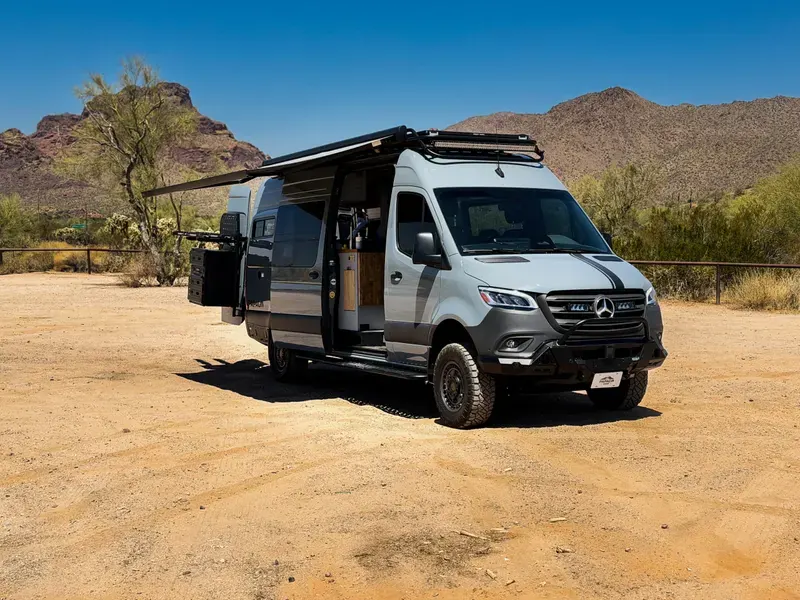

• FVCO front bumper with AWD skid plate and bull bar
• Exterior perimeter lighting package

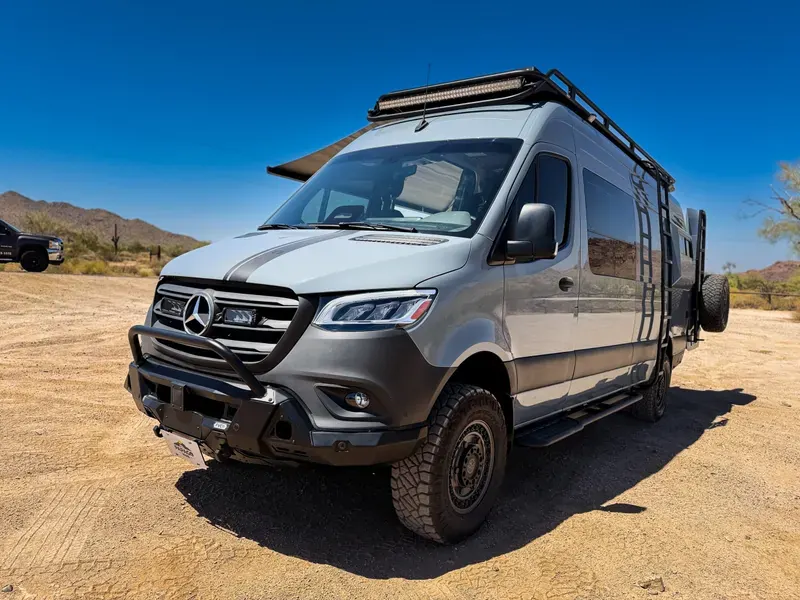

• 50 inch LED light bar
• Customer-provided FVCO side steps

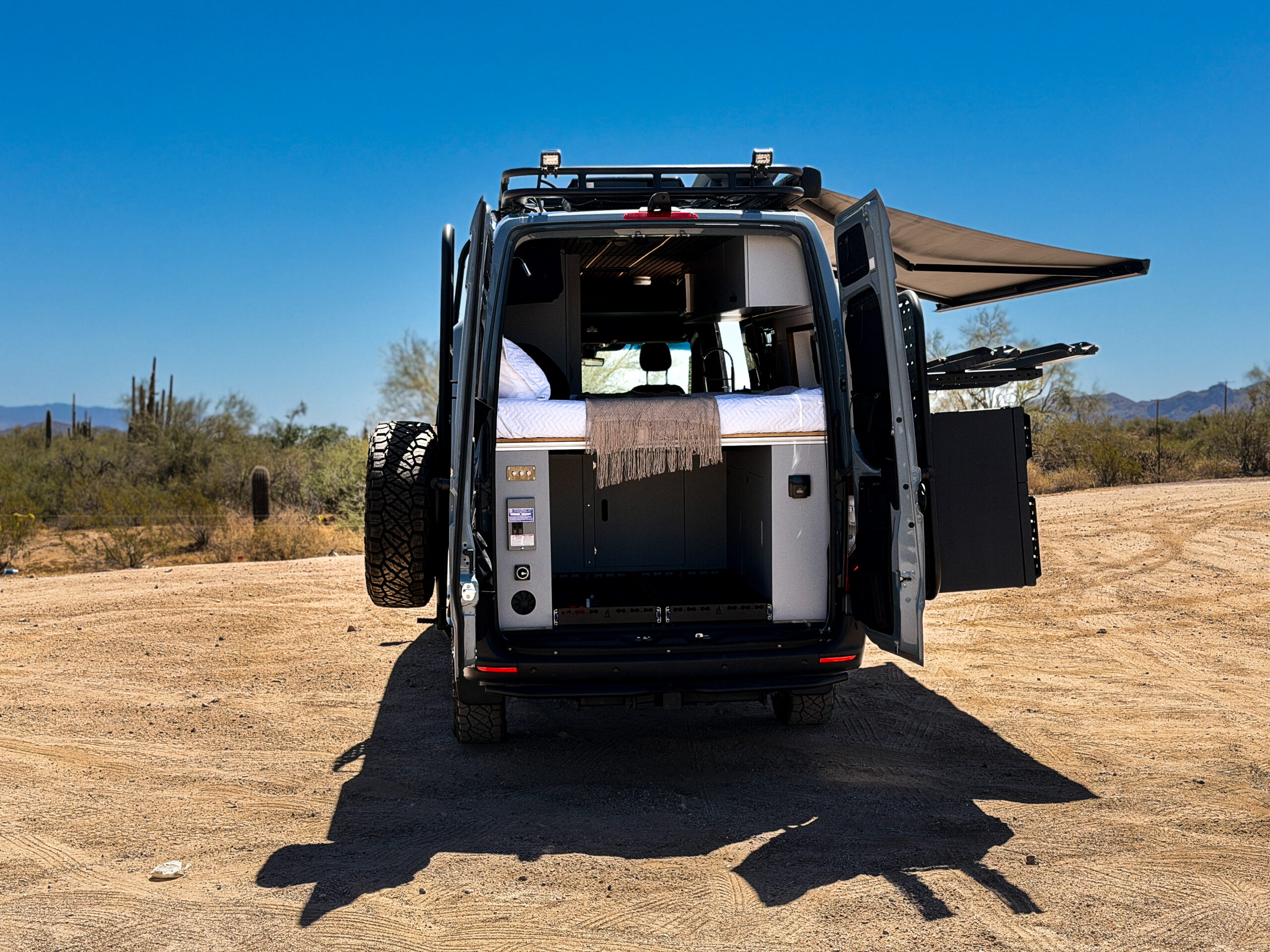

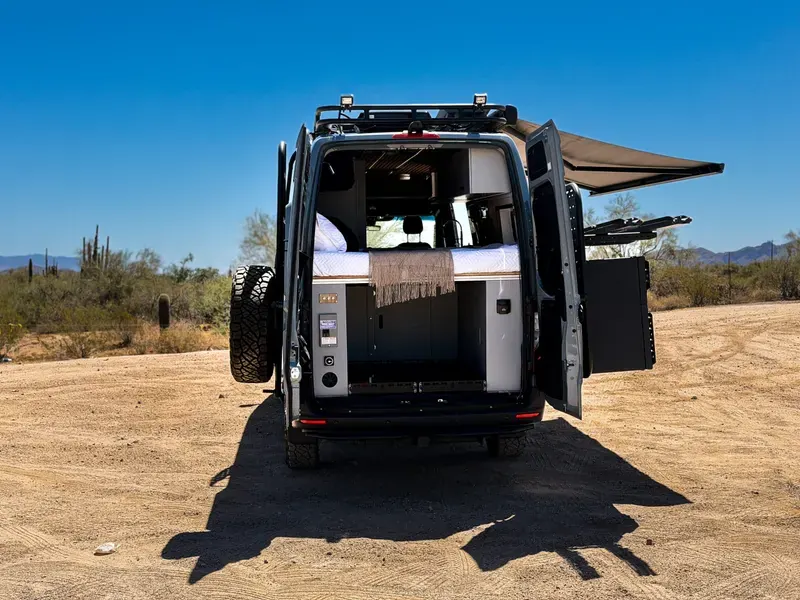

• FVCO rear door platform

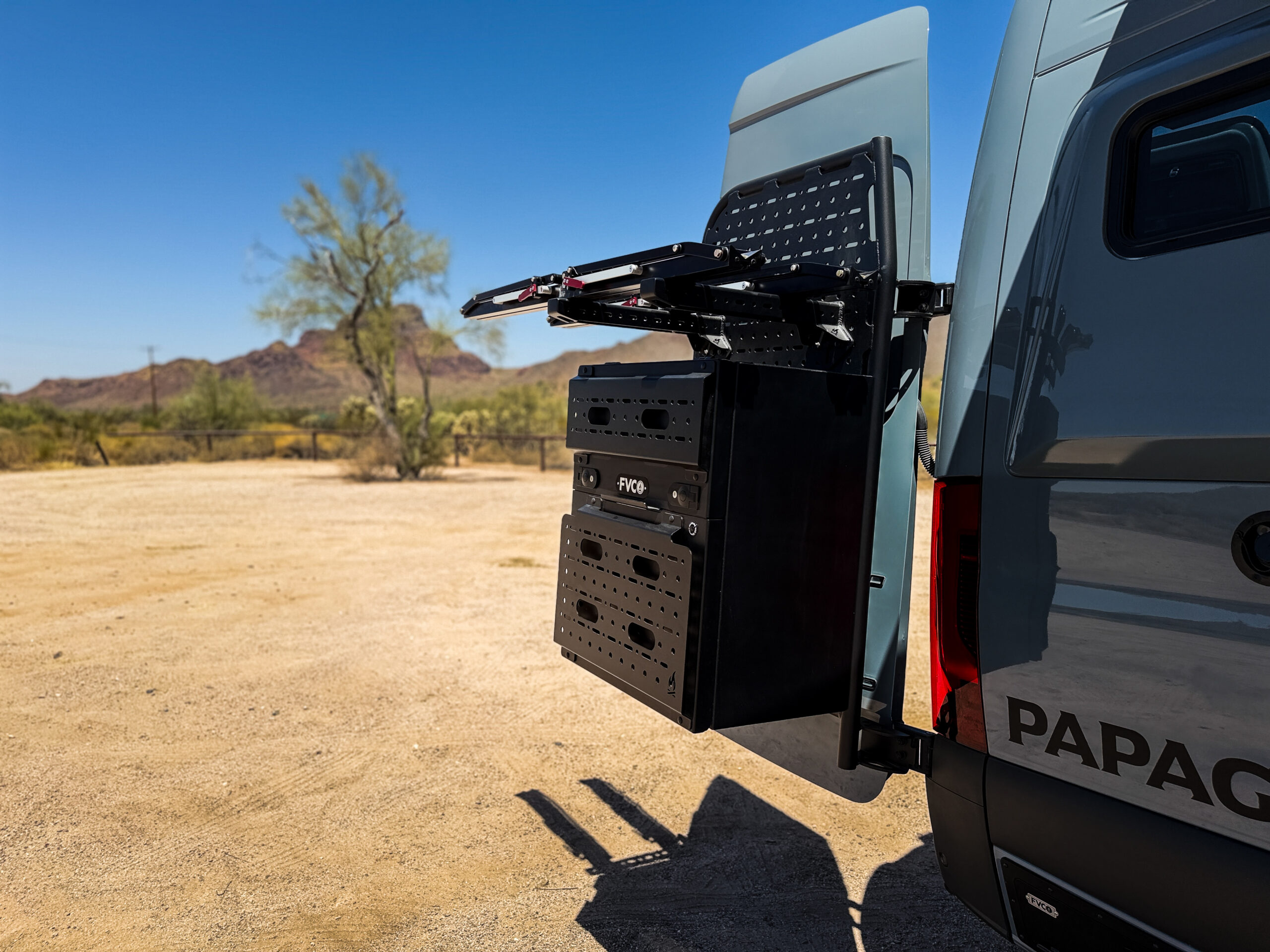

• FVCO rear storage box
• FVCO mounting posts
• 2x 1UP bike trays

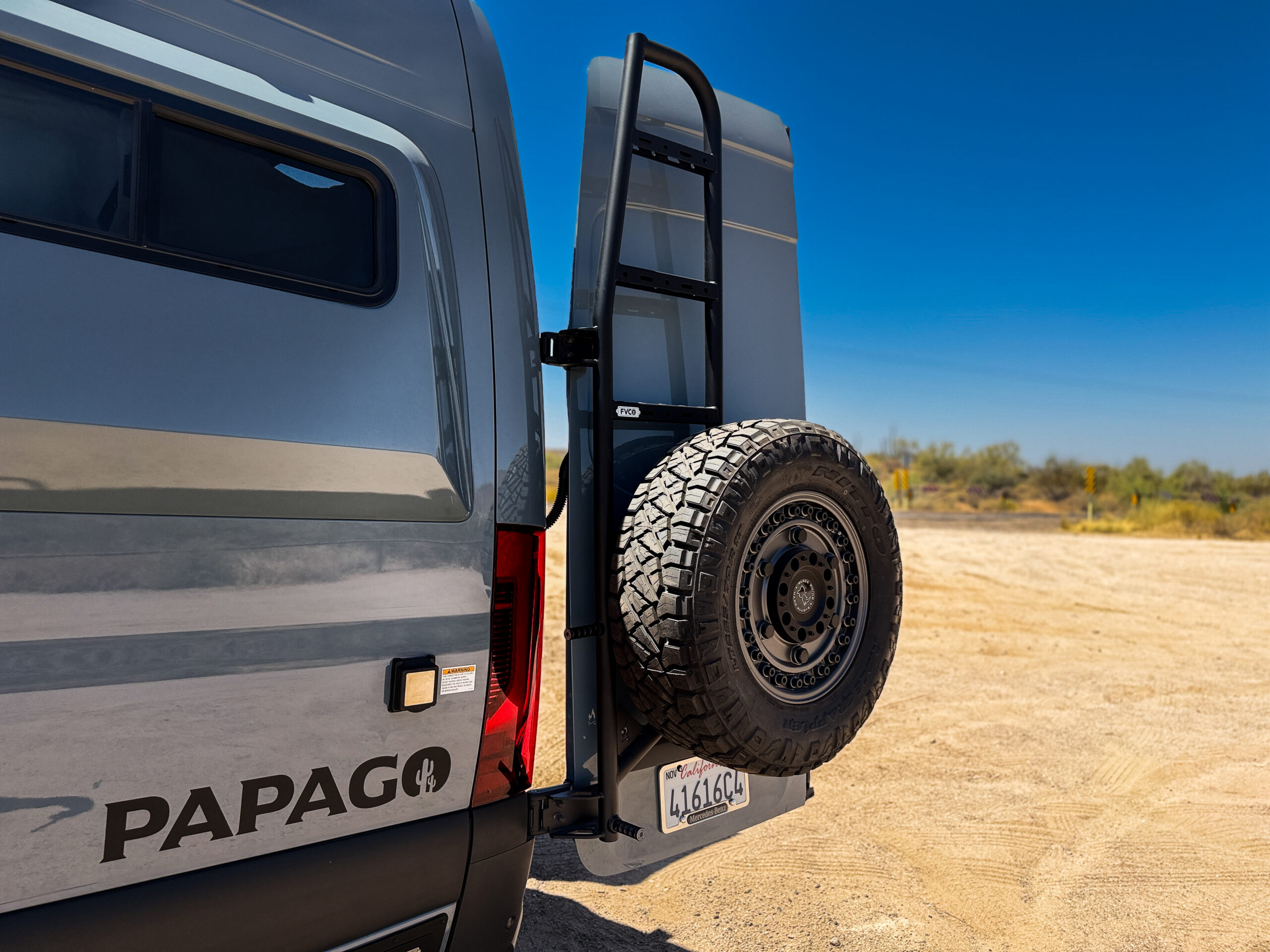

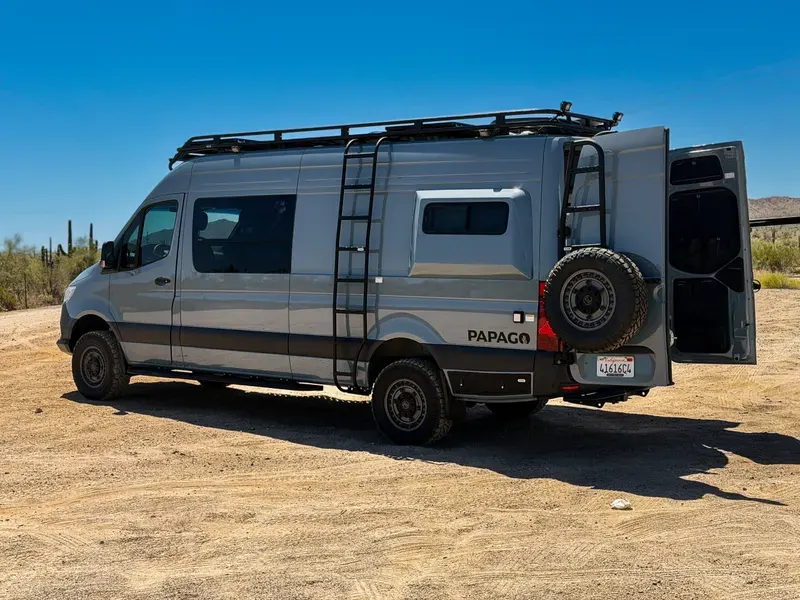

• FVCO rear ladder and tire carrier
• FVCO rocker lockers
• Owl Vans grille light kit
• Armory Gun Black upgraded rims
• Paint-matched vehicle body flares

Safety

• Carbon monoxide detector
• Smoke detector
• Fire extinguisher
• Magnetic insulated blackout window coverings

Interior colors and finishes

• Flooring: Talbot Oak
• Countertops, tables, trim, and control panels: Dirty Boots stain
• Slat ceiling: Natural Walnut with Black Felt
• Cabinet paint: African Gray
• Wall paint: Papago Soft White
• Fixtures: Stainless
• Switches and reading lights: Stainless
• Outlets: White on walls and backsplash, black on gray painted surfaces
• Door pulls and knobs: Black Leather with Black Knobs
• Shower tile: Tauleto Bianco
• Shower grout: Natural Gray
• Backsplash tile: Elida Ceramica Crystal Pointe
• Backsplash grout: Natural Gray
• Rims: Armory Gun Black
• Vehicle body flares: Paint matched to Sprinter
